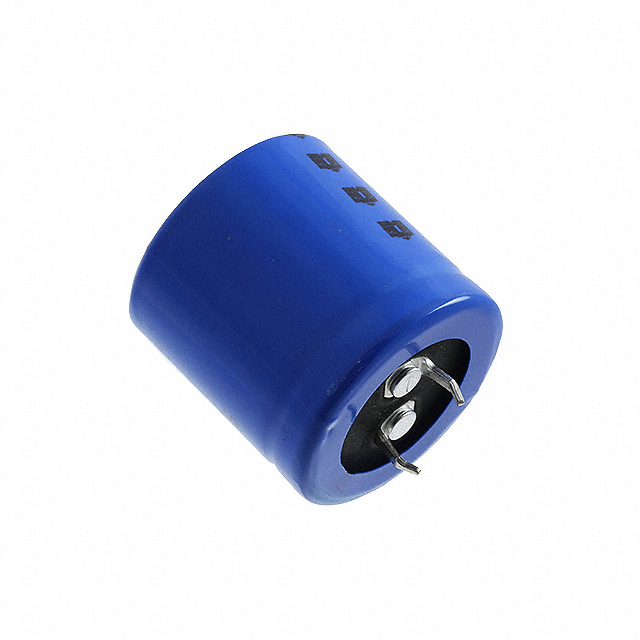

MAL209018472E3
CAP ALUM 4700UF 20% 63V SNAP THManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
4700 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 88mOhm @ 100Hz 5000 Hrs @ 105°C
Additional Information
Series: 090 PUL-SIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.181"" Dia (30.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | Audio |
| Lead Spacing | 0.394"" (10.00mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 88mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.260"" (32.00mm) |
| Capacitance | 4700 µF |
| Voltage - Rated | 63 V |
| Impedance | 71 mOhms |
| Ripple Current @ Low Frequency | 3.1 A @ 100 Hz |
Request a Quote
Clients Also Buy
MAL209010472E3
CAP ALUM 4700UF 20% 35V SNAP TH
MAL209011332E3
CAP ALUM 3300UF 20% 50V SNAP TH

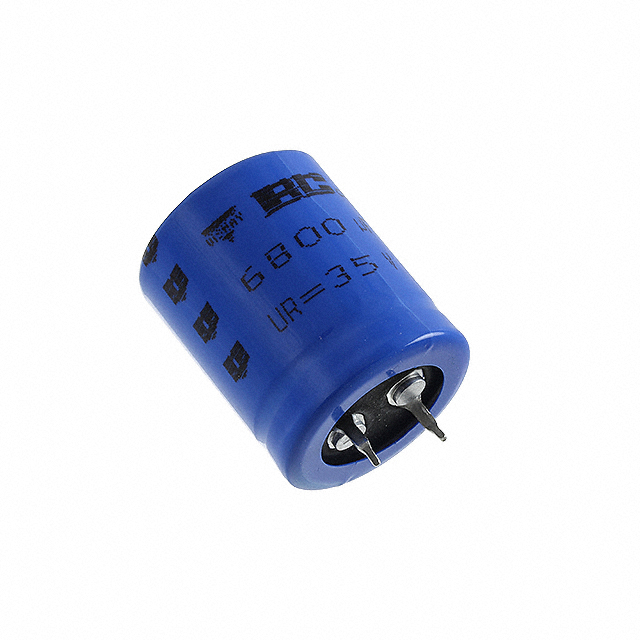

MAL209020682E3
