MAL205858102E3

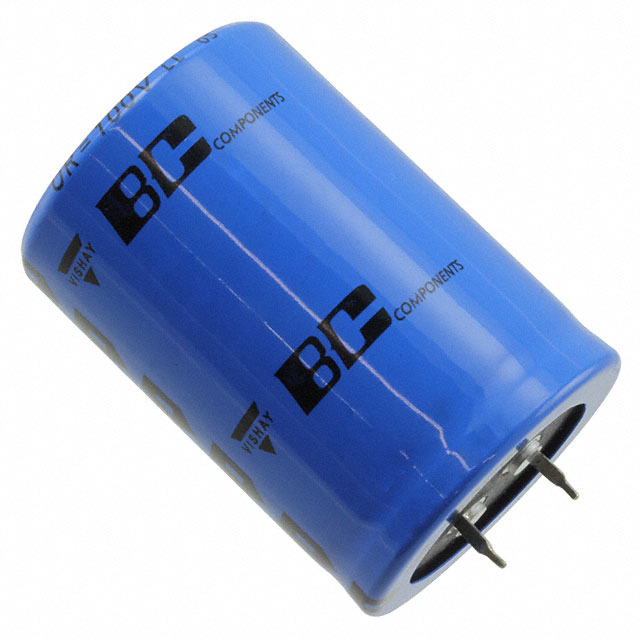

CAP ALUM 1000UF 20% 63V SNAP THManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
1000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 170mOhm @ 100Hz 10000 Hrs @ 105°C
Additional Information
Series: 058 PLL-SIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Box (TB) |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 0.866"" Dia (22.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.394"" (10.00mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 170mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.260"" (32.00mm) |
| Capacitance | 1000 µF |
| Voltage - Rated | 63 V |
| Impedance | 115 mOhms |
| Ripple Current @ Low Frequency | 1.46 A @ 100 Hz |
Request a Quote
