MAL203866332E3
CAP ALUM 3300UF 20% 25V RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

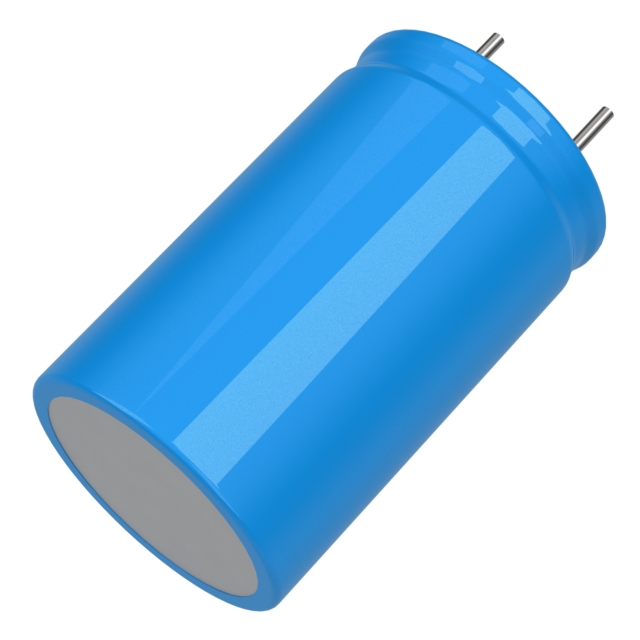

Vishay Beyschlag/Draloric/BC Components 038 RSU series aluminum electrolytic capacitor, part number MAL203866332E3. This radial, can-type component offers a capacitance of 3300 µF with a ±20% tolerance and a rated voltage of 25 V. It features a high ripple current capability of 2.271 A at 10 kHz. Designed for through-hole mounting, it has a lead spacing of 0.295" (7.50mm) and a diameter of 0.630" (16.00mm), with a seated height of 1.063" (27.00mm). The operating temperature range is -40°C to 85°C, with a specified lifetime of 3500 hours at 85°C. This component is suitable for general-purpose applications in industries such as consumer electronics and industrial equipment.
Additional Information
Series: 038 RSURoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630"" Dia (16.00mm) |
| Polarization | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.295"" (7.50mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.063"" (27.00mm) |
| Capacitance | 3300 µF |
| Voltage - Rated | 25 V |
| Ripple Current @ High Frequency | 2.271 A @ 10 kHz |
