MAL203861222E3
CAP ALUM 2200UF 20% 50V RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

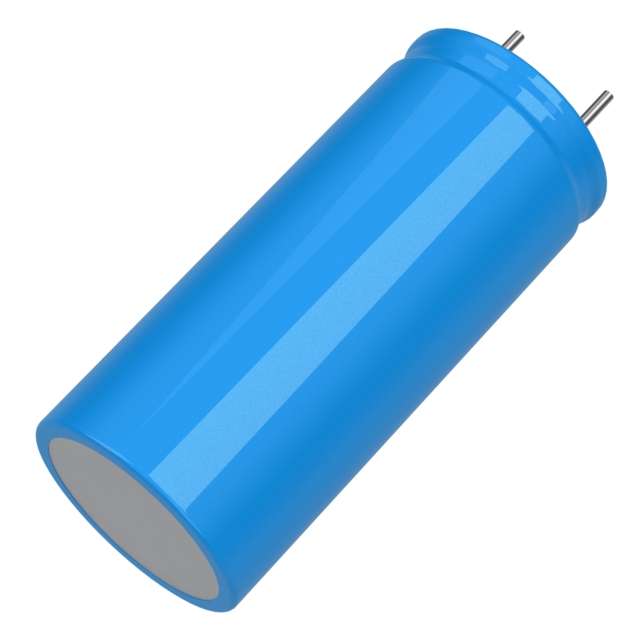

Vishay Beyschlag/Draloric/BC Components 038 RSU series aluminum electrolytic capacitor, part number MAL203861222E3. This radial, can-style capacitor offers a capacitance of 2200 µF with a ±20% tolerance and a 50 V voltage rating. Designed for through-hole mounting, it features a 16.00 mm diameter and 7.50 mm lead spacing, with a seated height of 33.00 mm. The component is rated for 3500 hours of operation at 85°C and supports a ripple current of 2.168 A at 10 kHz. Operating temperature range is -40°C to 85°C. This component is suitable for general-purpose applications in sectors such as industrial automation and power supply design.
Additional Information
Series: 038 RSURoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630"" Dia (16.00mm) |
| Polarization | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.295"" (7.50mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.299"" (33.00mm) |
| Capacitance | 2200 µF |
| Voltage - Rated | 50 V |
| Ripple Current @ High Frequency | 2.168 A @ 10 kHz |
