MAL203861102E3
CAP ALUM 1000UF 20% 50V RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

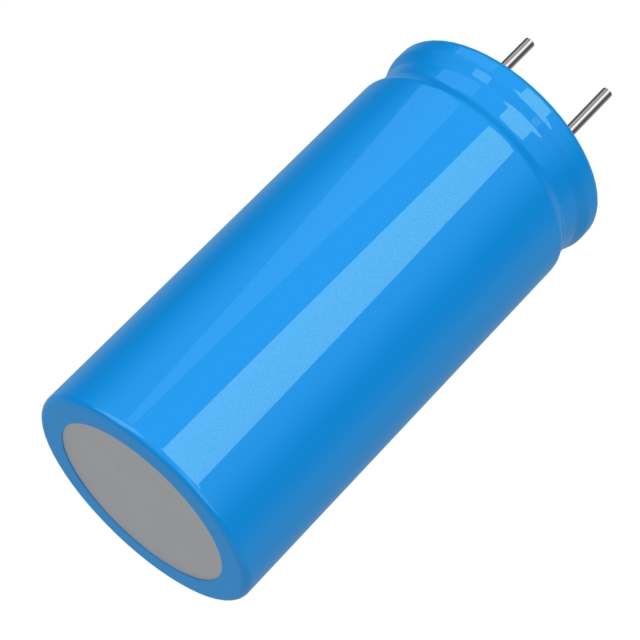

Vishay Beyschlag/Draloric/BC Components 038 RSU series MAL203861102E3 is a 1000 µF ±20% radial aluminum electrolytic capacitor rated for 50 V. This component offers a robust 3500-hour lifetime at 85°C and operates across a temperature range of -40°C to 85°C. Key electrical specifications include a high ripple current capability of 1.809 A at 10 kHz. The compact radial can package has a diameter of 13.00 mm and a height of 27.00 mm, with a 5.00 mm lead spacing suitable for through-hole mounting. This capacitor is widely utilized in general-purpose applications across various industrial sectors.
Additional Information
Series: 038 RSURoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.512"" Dia (13.00mm) |
| Polarization | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.197"" (5.00mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.063"" (27.00mm) |
| Capacitance | 1000 µF |
| Voltage - Rated | 50 V |
| Ripple Current @ High Frequency | 1.809 A @ 10 kHz |
