MAL203860471E3
CAP ALUM 470UF 20% 35V RADIAL THManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

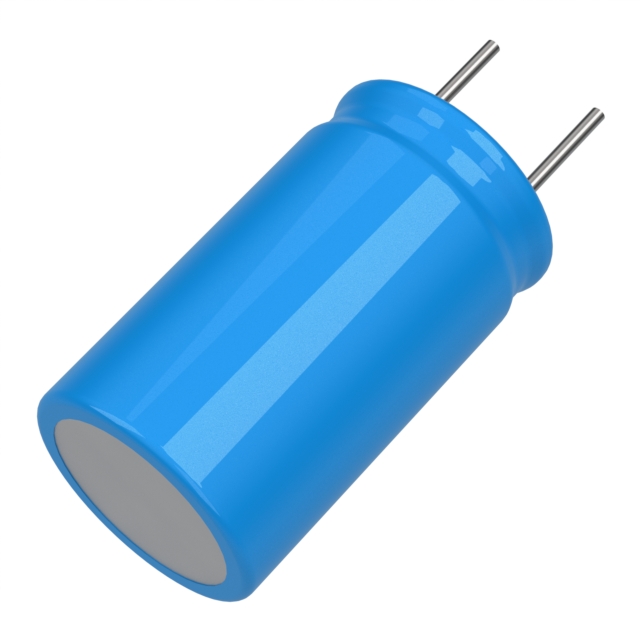

Vishay Beyschlag/Draloric/BC Components 038 RSU series aluminum electrolytic capacitor, part number MAL203860471E3, offers a 470 µF capacitance with a ±20% tolerance and a 35 V voltage rating. This radial, can-style component is designed for through-hole mounting and features a 0.197" (5.00mm) lead spacing. With a specified lifetime of 3500 hours at 85°C and an operating temperature range of -40°C to 85°C, it is suitable for general-purpose applications. The capacitor has a diameter of 0.394" (10.00mm) and a seated height of 0.709" (18.00mm). It supports a ripple current of 999 mA at 10 kHz. This component is commonly utilized in power supply filtering and decoupling applications across various industrial and consumer electronics sectors.
Additional Information
Series: 038 RSURoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.394"" Dia (10.00mm) |
| Polarization | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.197"" (5.00mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 0.709"" (18.00mm) |
| Capacitance | 470 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ High Frequency | 999 mA @ 10 kHz |
