MAL203858222E3
CAP ALUM 2200UF 20% 63V RADIALManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More

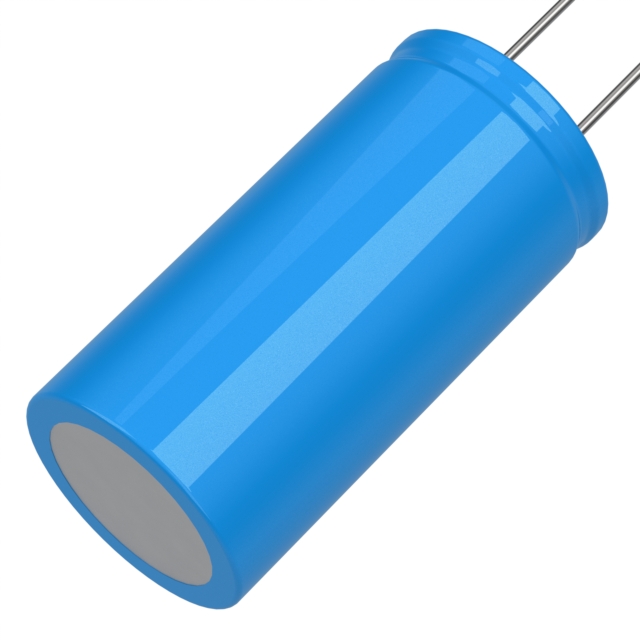

Vishay Beyschlag/Draloric/BC Components 038 RSU series MAL203858222E3 is a 2200 µF, ±20% tolerance aluminum electrolytic capacitor with a 63 V voltage rating. This radial, can-style component features a 3500-hour lifetime at 85°C and a ripple current capability of 2.242 A at 10 kHz. With a lead spacing of 0.295 inches (7.50mm) and a diameter of 0.709 inches (18.00mm), it is designed for through-hole mounting. The operating temperature range is -40°C to 85°C. This component finds application in general-purpose designs across various industrial and consumer electronics sectors.
Additional Information
Series: 038 RSURoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.709"" Dia (18.00mm) |
| Polarization | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.295"" (7.50mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3500 Hrs @ 85°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.457"" (37.00mm) |
| Capacitance | 2200 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ High Frequency | 2.242 A @ 10 kHz |
