2222 085 66338
CAP ALUM 3.3UF 20% 25V SMDManufacturer: Vishay Beyschlag/Draloric/BC Components
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Vishay Beyschlag/Draloric/BC Components 085 CS series, part number 2222-085-66338, is a 3.3 µF ±20% aluminum electrolytic capacitor designed for 25 V operation. This nonstandard SMD component features an Equivalent Series Resistance (ESR) of 87 Ohms and an impedance of 27 Ohms at 10 kHz. It offers a rated ripple current of 14.4 mA at 10 kHz and is specified for 1500 hours of operation at 85°C. The capacitor measures 0.346" L x 0.146" W (8.80mm x 3.70mm) with a maximum seated height of 0.154" (3.90mm). Operating temperature ranges from -40°C to 85°C. This component is suitable for general-purpose applications and is supplied on tape and reel.
Additional Information
Series: 085 CSRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard SMD |
| Size / Dimension | 0.346"" L x 0.146"" W (8.80mm x 3.70mm) |
| Polarization | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 87Ohm |
| Lifetime @ Temp. | 1500 Hrs @ 85°C |
| Surface Mount Land Size | 0.346"" L x 0.146"" W (8.80mm x 3.70mm) |
| Height - Seated (Max) | 0.154"" (3.90mm) |
| Capacitance | 3.3 µF |
| Voltage - Rated | 25 V |
| Impedance | 27 Ohms |
| Ripple Current @ High Frequency | 14.4 mA @ 10 kHz |
Request a Quote
Clients Also Buy

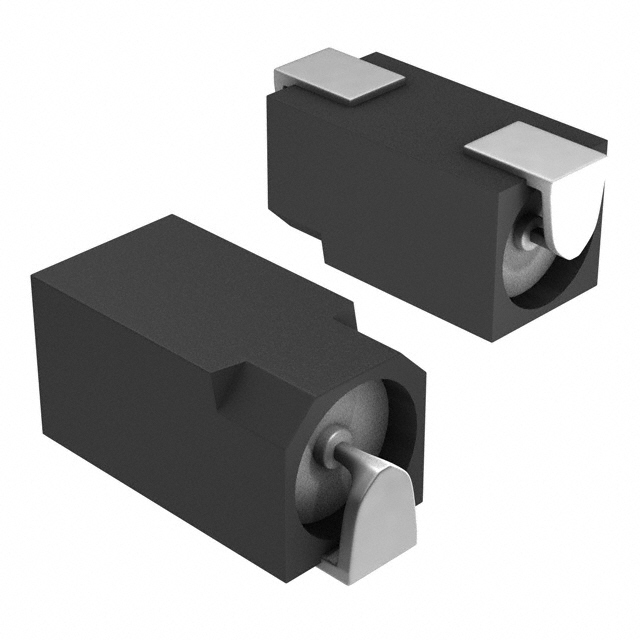

2222 085 63109
CAP ALUM 10UF 20% 6.3V SMD

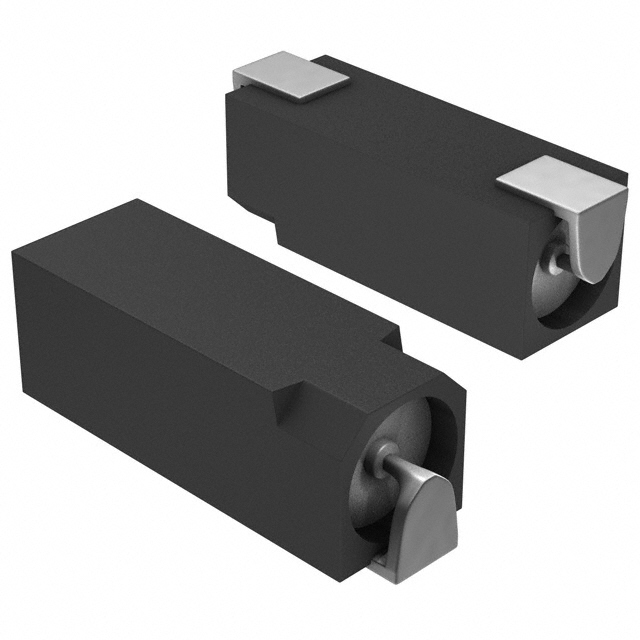

2222 085 63229
