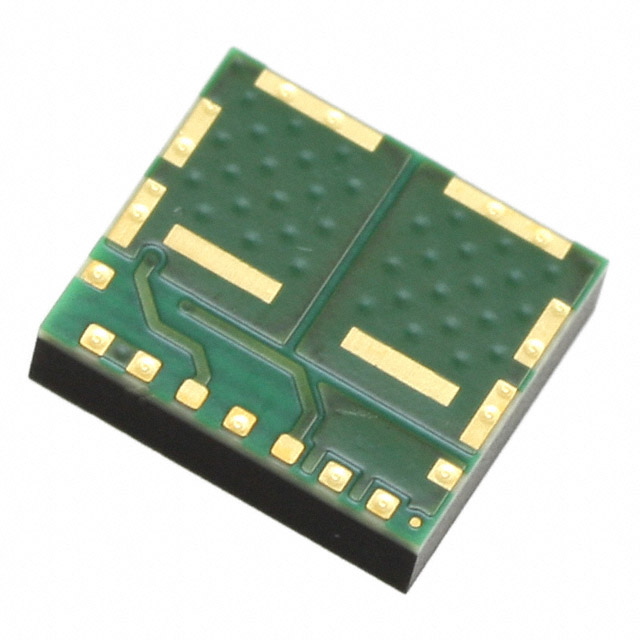

PI2161-01-LGIZ
IC PWR SWITCH N-CHAN 1:1 17LGAManufacturer: Vicor Corporation
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Vicor Corporation PI2161-01-LGIZ is an N-Channel power switch designed for general-purpose applications. This component features a 1:1 input-to-output ratio and can deliver a maximum output current of 12A. The device offers a low on-resistance of 8.5mOhm (typ) and includes a latch function for enhanced control. Packaged in a 17-LGA (7x8) surface-mount configuration, it is suitable for operation within an ambient temperature range of -40°C to 125°C (TJ). The PI2161-01-LGIZ is utilized in demanding sectors such as industrial automation and high-performance computing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Latch Function |
| Packaging | Tube |
| Package / Case | 17-LGA |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | - |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 8.5mOhm |
| Input Type | - |
| Voltage - Load | 8.5V ~ 10.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 12A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 17-LGA (7x8) |
| Fault Protection | - |
