PI2002-00-QEIG
IC OR CTRLRManufacturer: Vicor Corporation
Categories: OR Controllers, Ideal Diodes
Quality Control: Learn More
Vicor Corporation's PI2002-00-QEIG is an N+1 ORing controller designed for robust power system redundancy. This component utilizes N-channel MOSFETs to achieve efficient ORing functionality, minimizing voltage drop and power loss in high-reliability applications. The PI2002-00-QEIG is engineered for N+1 power supply configurations, commonly found in demanding Telecom/Datacom Systems where uninterrupted operation is critical. Its 10-TDFN (3x3) package facilitates surface mounting, and it operates across a wide temperature range of -40°C to 125°C. The device draws a typical supply current of 3.7 mA and features a fast 120 ns turn-off delay.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | N+1 ORing Controller |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | -48V |
| Applications | N+1 Power Supplies, Telecom/Datacom Systems |
| Internal Switch(s) | No |
| FET Type | N-Channel |
| Delay Time - OFF | 120 ns |
| Current - Output (Max) | - |
| Ratio - Input:Output | N:1 |
| Supplier Device Package | 10-TDFN (3x3) |
| Current - Supply | 3.7 mA |
Request a Quote
Clients Also Buy
PI2001-00-SOIG
IC OR CTRLR

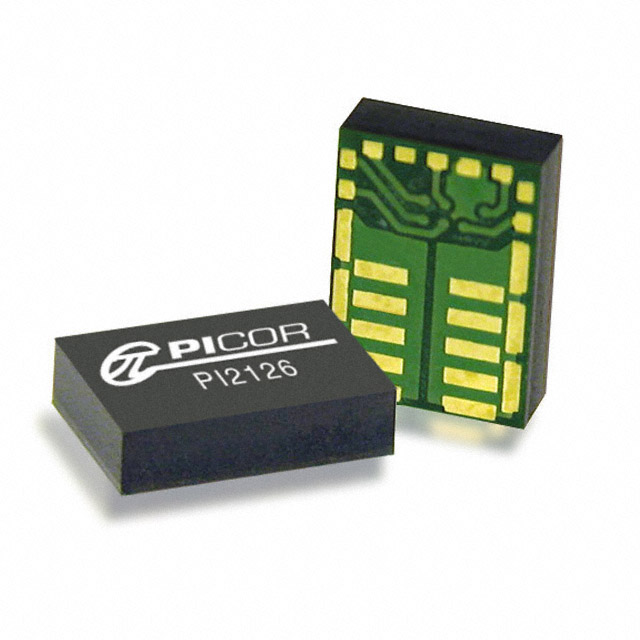

PI2126-00-LGIZ
IC OR CTRLR N+1 25LGA

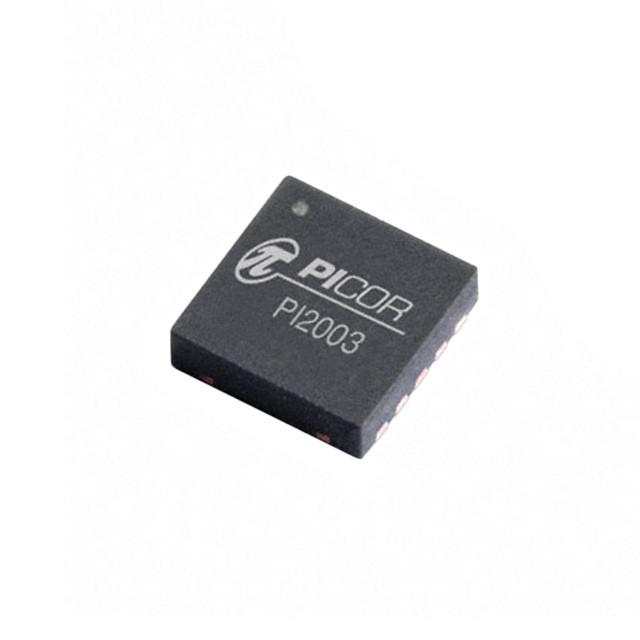

PI2003-00-QEIG
