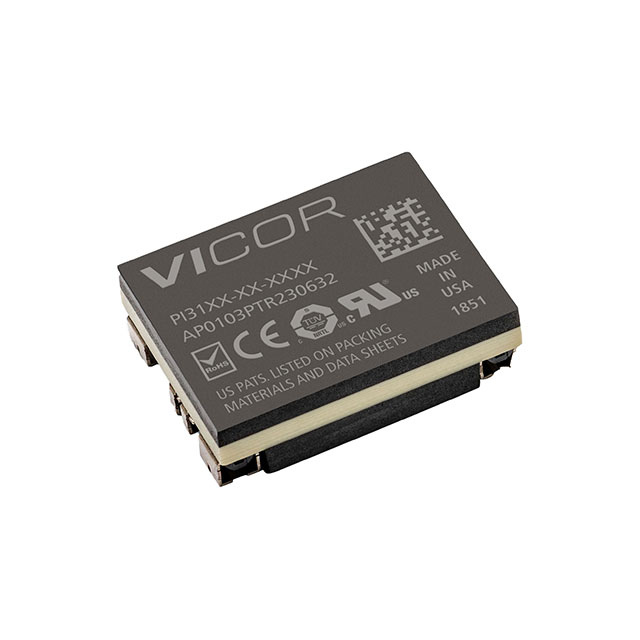

PI3526-00-BGIZ
IC REG BUCK 12V 18A 110BGAManufacturer: Vicor Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Vicor Corporation PI3526-00-BGIZ is a high-performance buck switching regulator IC. This module delivers a fixed 12V output at an impressive 18A, designed for demanding power conversion applications. Operating with an input voltage range of 30V to 60V, it features a 7MHz switching frequency for efficient power delivery and reduced component size. The PI3526-00-BGIZ utilizes a buck topology with synchronous rectification, optimizing conversion efficiency. Its 110-BBGA module package facilitates surface mounting and is supplied in a tray. This component is commonly employed in industrial automation, telecommunications infrastructure, and high-power computing systems where robust and efficient voltage regulation is critical. The operating temperature range is -40°C to 120°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 110-BBGA Module |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 18A |
| Operating Temperature | -40°C ~ 120°C |
| Output Configuration | Positive |
| Frequency - Switching | 7MHz |
| Voltage - Input (Max) | 60V |
| Topology | Buck |
| Supplier Device Package | 110-BGA (14.5x10.5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 30V |
| Voltage - Output (Min/Fixed) | 12V |
