VTM48ET320T009A00
DC DC CONVERTER 32V 300WManufacturer: Vicor Corporation
Categories: DC DC Converters
Quality Control: Learn More
Voltage Transformation Module DC DC Converter 1 Output 32V 9.4A 26V - 55V Input
Additional Information
Series: VI Chip® VTM®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OCP, OTP, OVP, SCP |
| Packaging | Tray |
| Package / Case | Module |
| Size / Dimension | 1.28"" L x 0.87"" W x 0.26"" H (32.5mm x 22.0mm x 6.7mm) |
| Mounting Type | Through Hole |
| Type | Voltage Transformation Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 55V |
| Efficiency | 96.2% |
| Current - Output (Max) | 9.4A |
| Voltage - Input (Min) | 26V |
| Voltage - Output 1 | 32V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Power (Watts) | 300 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 2.25 kV |
Request a Quote
Clients Also Buy
VE-260-CV
DC DC CONVERTER 5V 150W

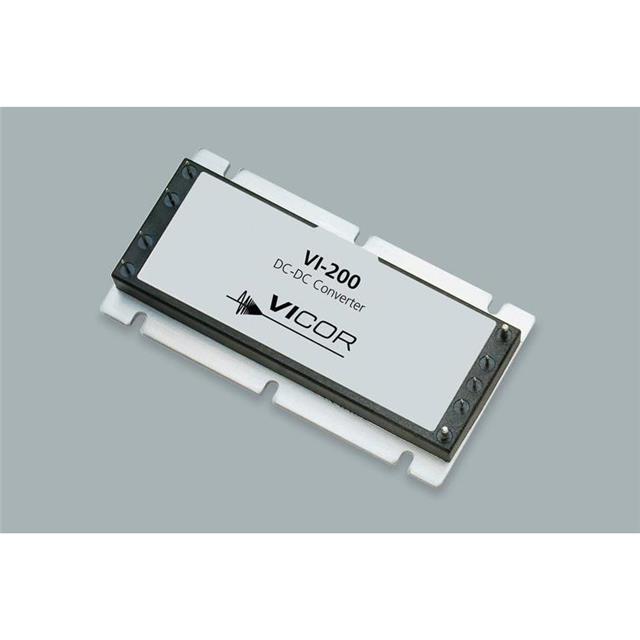

VE-B60-CV
