MDLS-81809-SS-LV-S
LCD MOD 8 DIG 8 X 1 REFLECTIVEManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

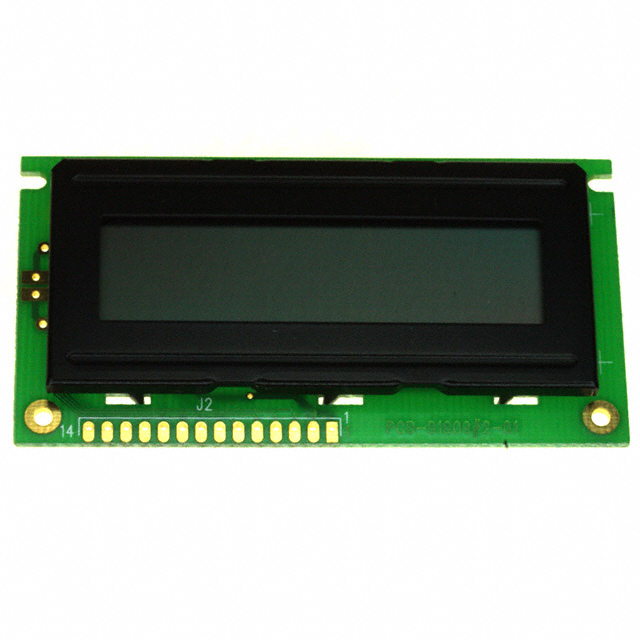

The Varitronix MDL(S)-81809 series, part number MDLS-81809-SS-LV-S, is an 8-character, 1x8 dot matrix reflective STN character display module. This component features a 5x8 dot character format with a character size of 10.75mm H x 6.45mm W and a dot size of 1.25mm W x 1.30mm H. It operates without a backlight, utilizing a reflective display mode for ambient light readability. The module offers a parallel interface and operates at a 5V supply voltage. Its outline dimensions are 84.00mm x 44.00mm x 6.80mm, with a viewing area of 61.00mm L x 15.80mm W. The operating temperature range is -5°C to 50°C. This display module is suitable for applications in industrial control, instrumentation, and point-of-sale systems where low power consumption and direct sunlight readability are critical.
Additional Information
Series: MDL(S)-81809RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 5V |
| Viewing Area | 61.00mm L x 15.80mm W |
| Character Size | 10.75mm H x 6.45mm W |
| Display Format | 8 x 1 |
| Character Format | 5 x 8 Dots |
| Dot Size | 1.25mm W x 1.30mm H |
| Outline L x W x H | 84.00mm x 44.00mm x 6.80mm |
| Text Color | - |
| Background Color | Green |
| Number of Characters | 8.0 |
| Packaging |
Request a Quote
Clients Also Buy

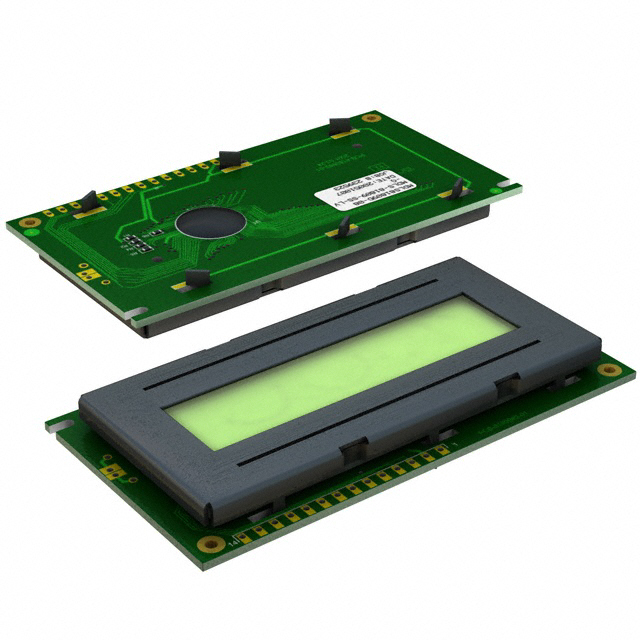

MDLS-81809-SS-LV-G
