MDLS-40466-SS-G-HV
LCD MOD 160DIG 40 X 4 REFLECTIVEManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

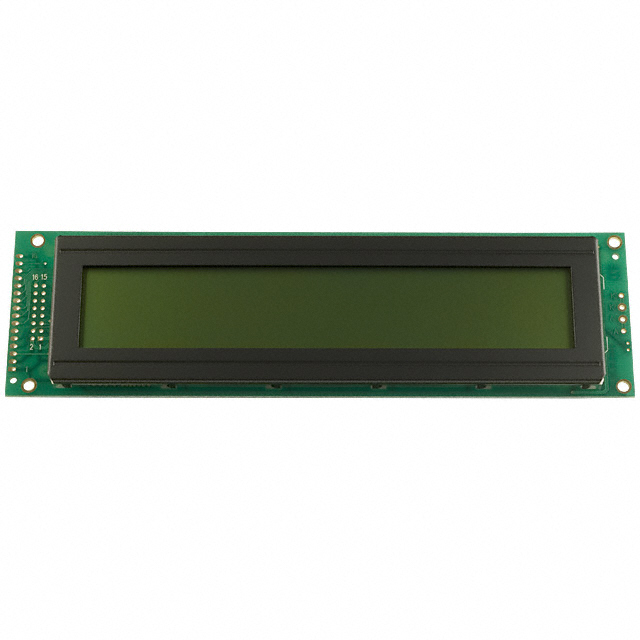

Varitronix MDL(S)-40466 series MDLS-40466-SS-G-HV is a 40 x 4 character LCD display module featuring a reflective STN – Super-Twisted Nematic technology for 160 character alphanumeric display. This module operates without a backlight, utilizing ambient light for readability. The character format is 5 x 8 dots with a dot size of 0.55mm W x 0.60mm H and character dimensions of 5.50mm H x 3.15mm W. It utilizes a parallel interface and requires a 5V supply voltage. The module’s outline dimensions are 196.00mm x 56.00mm x 6.60mm, with a viewing area of 154.40mm L x 27.60mm W. Operating temperature range is -10°C to 60°C. This component is suitable for applications in industrial automation, medical devices, and test and measurement equipment where low power consumption and direct sunlight readability are critical.
Additional Information
Series: MDL(S)-40466RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -10°C ~ 60°C |
| Voltage - Supply | 5V |
| Viewing Area | 154.40mm L x 27.60mm W |
| Character Size | 5.50mm H x 3.15mm W |
| Display Format | 40 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.60mm H |
| Outline L x W x H | 196.00mm x 56.00mm x 6.60mm |
| Text Color | - |
| Background Color | Green |
| Number of Characters | 160.0 |
| Packaging |
