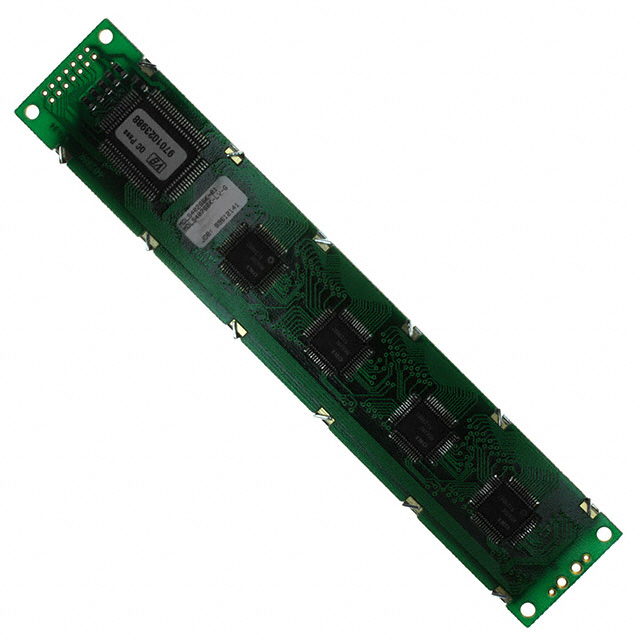

MDLS-40266K-LV-G
LCD MOD 80 DIG 40 X 2 REFLECTIVEManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
The Varitronix MDL(S)-40266K-LV-G is a 40x2 character LCD module featuring an STN Super-Twisted Nematic display technology. This reflective module offers an 80-character display with a 5x8 dot matrix per character, providing clear legibility for applications where backlighting is not a requirement. The module operates with a parallel interface and supports a 5V supply voltage. Its dimensions are 118.00mm x 33.50mm x 6.60mm with a viewing area of 154.00mm L x 15.80mm W. The operating temperature range is -5°C to 50°C. This component is commonly utilized in industrial control systems, measurement equipment, and consumer electronics.
Additional Information
Series: MDL(S)-40266KRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 5V |
| Viewing Area | 154.00mm L x 15.80mm W |
| Character Size | 5.50mm H x 3.15mm W |
| Display Format | 40 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.60mm W x 0.60mm H |
| Outline L x W x H | 118.00mm x 33.50mm x 6.60mm |
| Text Color | Black |
| Background Color | Green |
| Number of Characters | 80.0 |
| Packaging |
