MDLS-40266-SS-LV-G-LED-04-G
LCD MOD 80DIG 40X2 TRANSFLCT GRNManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

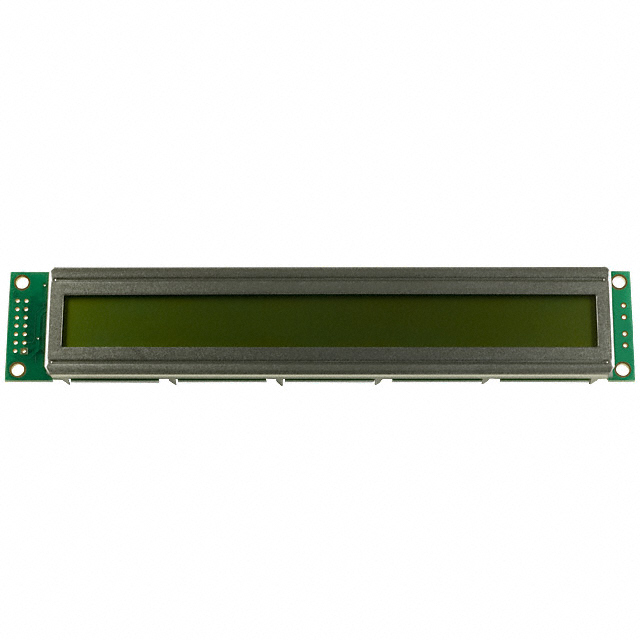

Varitronix MDL(S)-40266 character display module, part number MDLS-40266-SS-LV-G-LED-04-G, features a 40x2 character format with 80 characters total. This STN-LCD display operates in transflective mode, offering a green LED backlight for enhanced readability. The character format is 5 x 8 dots, with individual dot dimensions of 0.55mm W x 0.60mm H and character dimensions of 5.15mm H x 3.15mm W. The module utilizes a parallel interface and operates on a 5V supply. Its overall dimensions are 182.00mm x 33.50mm x 11.00mm, with a viewing area of 154.00mm L x 15.80mm W. This component is suitable for applications requiring clear alphanumeric output in environments such as industrial control systems and point-of-sale terminals. The operating temperature range is -5°C to 50°C.
Additional Information
Series: MDL(S)-40266RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Green |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 5V |
| Viewing Area | 154.00mm L x 15.80mm W |
| Character Size | 5.15mm H x 3.15mm W |
| Display Format | 40 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.60mm H |
| Outline L x W x H | 182.00mm x 33.50mm x 11.00mm |
| Text Color | - |
| Background Color | Green |
| Number of Characters | 80.0 |
| Packaging |
