MDLS-24265-SS-LV-G-LED-04-G
LCD MOD 48DIG 24X2 TRANSFLCT GRNManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

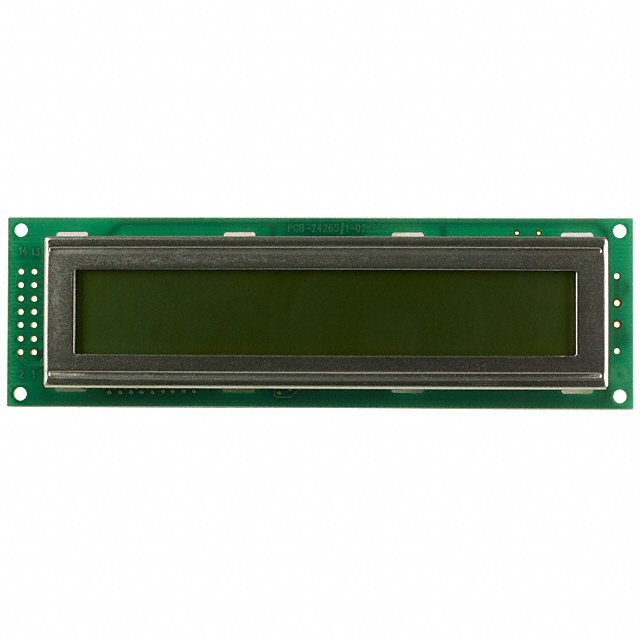

The Varitronix MDL(S)-24265-SS-LV-G-LED-04-G is a 24-character by 2-line transflective STN LCD module with 5 x 8 dot characters and a green LED backlight. This module features a parallel interface for data communication and a 5V supply voltage. The transflective display technology allows for readability in both ambient light and with its integrated green LED backlight. Its character format supports 48 characters total, with each character matrix measuring 5 x 8 dots. The physical dimensions are 118.00mm in length, 36.00mm in width, and 10.00mm in height, with a viewing area of 93.50mm x 15.80mm. Operating temperature range is -5°C to 50°C. This display component finds application in industrial automation, medical equipment, and point-of-sale systems.
Additional Information
Series: MDL(S)-24265RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Green |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 5V |
| Viewing Area | 93.50mm L x 15.80mm W |
| Character Size | 5.15mm H x 3.15mm W |
| Display Format | 24 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.60mm W x 0.60mm H |
| Outline L x W x H | 118.00mm x 36.00mm x 10.00mm |
| Text Color | - |
| Background Color | Green |
| Number of Characters | 48.0 |
| Packaging |
