MDLS-20464-LV-S
LCD MOD 80 DIG 20 X 4 REFLECTIVEManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
The Varitronix MDL(S)-20464-LV-S is a 20x4 character LCD module featuring an STN Super-Twisted Nematic display technology. This reflective module operates without a backlight and offers an 80-character capacity, with each character configured as a 5x8 dot matrix. The module utilizes a parallel interface for data and control signals and requires a single 5V supply. Measuring 98.00mm x 60.00mm x 7.10mm with a viewing area of 76.00mm L x 25.20mm W, it is suitable for applications requiring clear alphanumeric display in various ambient lighting conditions. Typical operating temperature range is -5°C to 50°C. This component finds application in industrial control, instrumentation, and portable electronic devices.
Additional Information
Series: MDL(S)-20464RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 5V |
| Viewing Area | 76.00mm L x 25.20mm W |
| Character Size | 4.70mm H x 2.90mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.50mm W x 0.50mm H |
| Outline L x W x H | 98.00mm x 60.00mm x 7.10mm |
| Text Color | - |
| Background Color | - |
| Number of Characters | 80.0 |
Request a Quote
Clients Also Buy

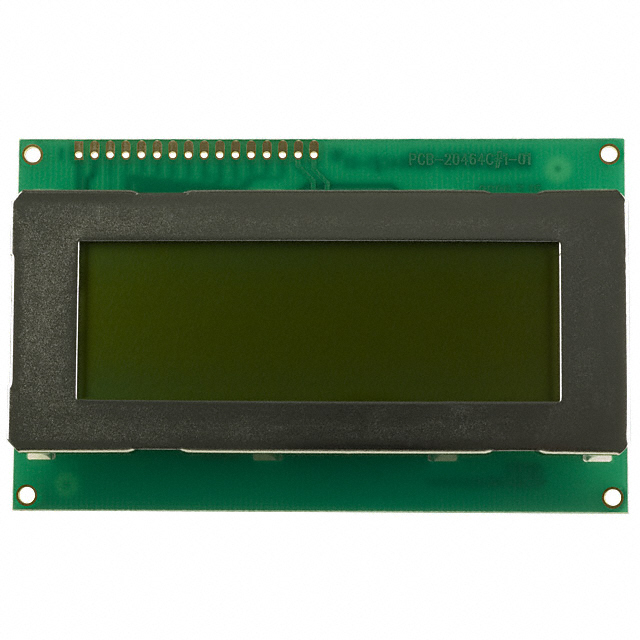

MDLS-20464-SS-LV-G
LCD MOD 80 DIG 20 X 4 REFLECTIVE

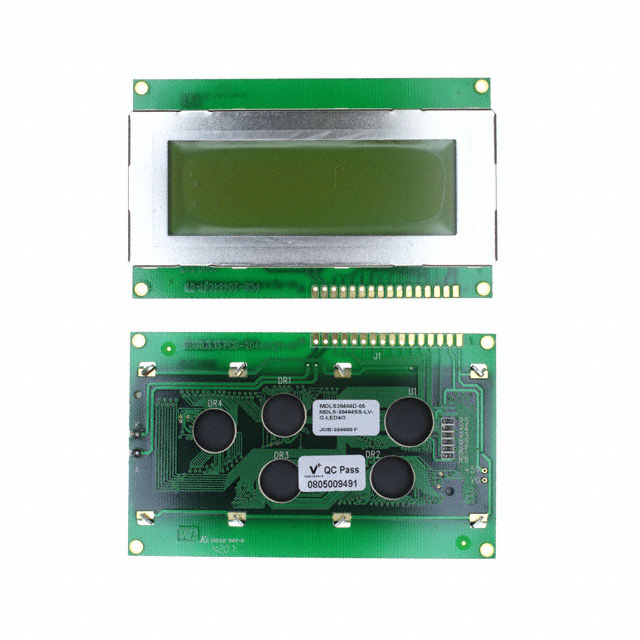

MDLS-20464-SS-LV-G-LED-04-G
