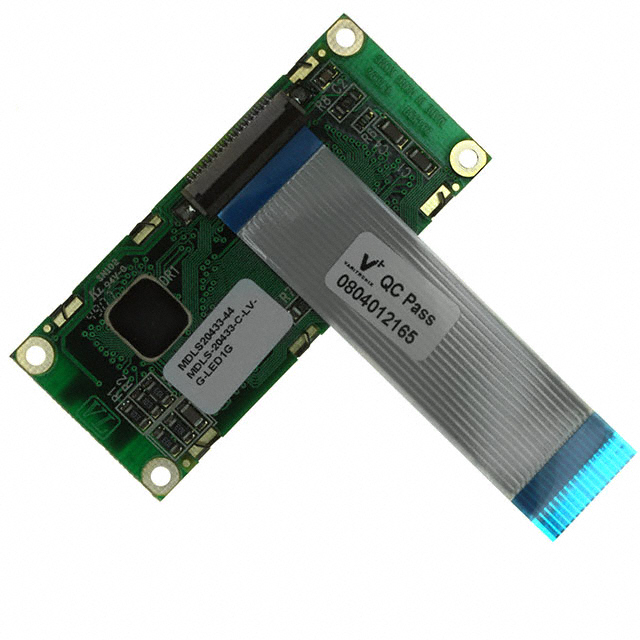

MDLS-20433-C-LV-G-LED01G
LCD MOD 80DIG 20X4 TRANSFLCT GRNManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
The Varitronix MDL(S)-20433-C-LV-G-LED01G is a character display module featuring a 20x4 character format with an 80-digit capacity. This STN Super-Twisted Nematic display offers a transflective mode, enabling readability in varying light conditions. The module utilizes a green LED backlight for illumination and supports a parallel interface for data communication. Each character is formed by a 5x8 dot matrix, with a dot size of 0.33mm W x 0.35mm H and character dimensions of 3.15mm H x 1.85mm W. The overall dimensions of the module are 65.00mm x 28.40mm x 8.00mm, with a viewing area of 46.00mm L x 18.40mm W. It operates with a supply voltage range of 4.8V to 6V and is suitable for an operating temperature range of -5°C to 50°C. This component is commonly utilized in industrial control, point-of-sale systems, and instrumentation applications.
Additional Information
Series: MDL(S)-20433RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Green |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 4.8V ~ 6V |
| Viewing Area | 46.00mm L x 18.40mm W |
| Character Size | 3.15mm H x 1.85mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.33mm W x 0.35mm H |
| Outline L x W x H | 65.00mm x 28.40mm x 8.00mm |
| Text Color | - |
| Background Color | - |
| Number of Characters | 80.0 |
