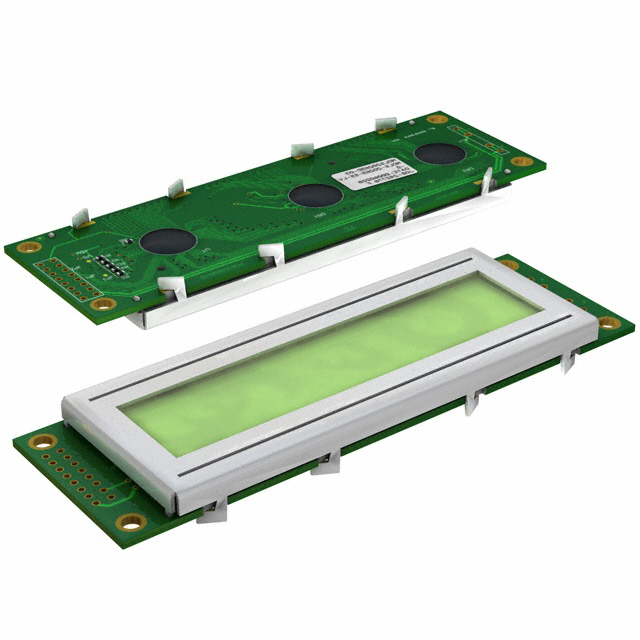

MDLS-20265-SS-LV-G
LCD MOD 40 DIG 20 X 2 REFLECTIVEManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Varitronix MDL(S)-20265 character display module featuring a 20x2 format with 40 characters total. This STN-Super-Twisted Nematic monochrome display utilizes a reflective mode, eliminating the need for a backlight and offering a green background with no specified text color. The module supports a 5x8 dot character format, with individual characters measuring 5.55mm H x 3.20mm W and dots at 0.65mm W x 0.60mm H. It operates on a 5V supply and employs a parallel interface for data transfer. With an operating temperature range of -5°C to 50°C, the MDLS-20265-SS-LV-G has an outline dimension of 116.00mm x 37.00mm x 6.70mm and a viewing area of 83.00mm L x 18.60mm W. This component is suitable for applications in instrumentation, industrial control, and portable electronics.
Additional Information
Series: MDL(S)-20265RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 5V |
| Viewing Area | 83.00mm L x 18.60mm W |
| Character Size | 5.55mm H x 3.20mm W |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.65mm W x 0.60mm H |
| Outline L x W x H | 116.00mm x 37.00mm x 6.70mm |
| Text Color | - |
| Background Color | Green |
| Number of Characters | 40.0 |
| Packaging |
Request a Quote
Clients Also Buy

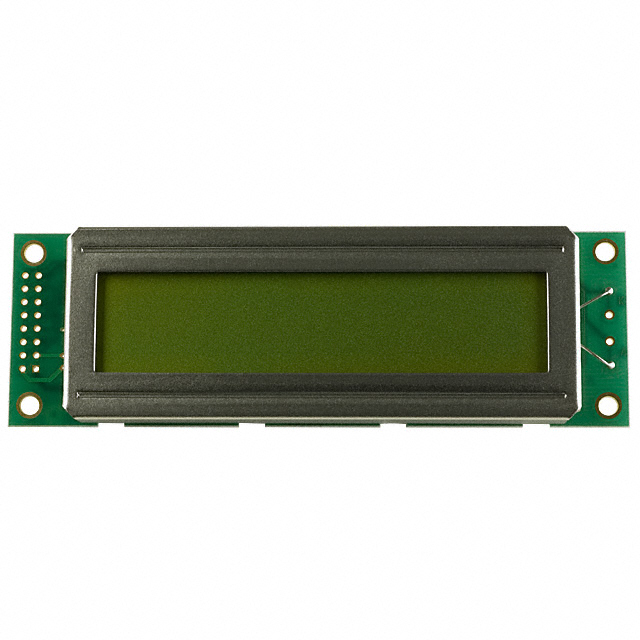

MDLS-20265-SS-LV-G-LED-04-G
