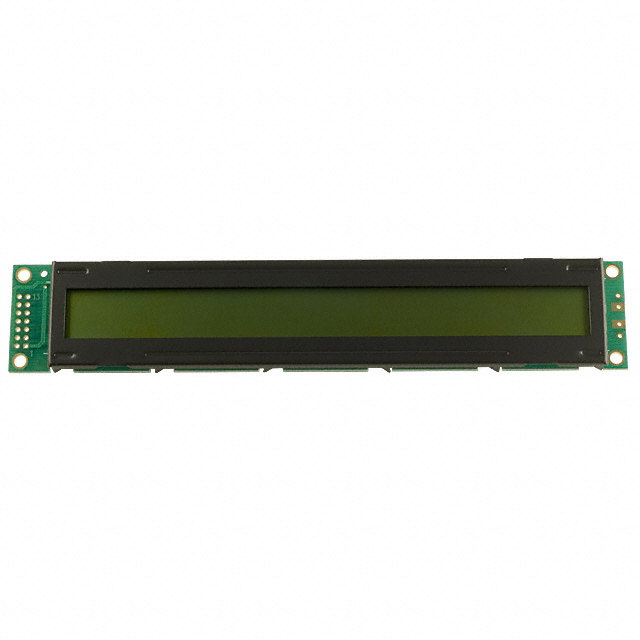

MDLS-20189-SS-LV-G
LCD MOD 20 DIG 20 X 1 REFLECTIVEManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
The Varitronix MDL(S)-20189 series character display module, part number MDLS-20189-SS-LV-G, offers a 20-character by 1-line STN-Super-Twisted Nematic reflective display. This module features a 5 x 8 dot character format with individual dot dimensions of 1.30mm W x 1.30mm H, and character dimensions of 11.50mm H x 6.70mm W. The parallel interface simplifies integration, and the reflective display mode eliminates the need for a backlight, making it suitable for applications requiring low power consumption. The module operates at a supply voltage of 5V and has an operating temperature range of -5°C to 50°C. Its physical dimensions are 182.00mm x 33.50mm x 7.60mm, with a viewing area of 154.00mm x 15.30mm. This component is commonly found in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: MDL(S)-20189RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 5V |
| Viewing Area | 154.00mm L x 15.30mm W |
| Character Size | 11.50mm H x 6.70mm W |
| Display Format | 20 x 1 |
| Character Format | 5 x 8 Dots |
| Dot Size | 1.30mm W x 1.30mm H |
| Outline L x W x H | 182.00mm x 33.50mm x 7.60mm |
| Text Color | - |
| Background Color | Green |
| Number of Characters | 20.0 |
| Packaging |
