MDLS-16465-SS-LV-S-LED-04-G
LCD MOD 64DIG 16X4 TRANSFLCT GRNManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

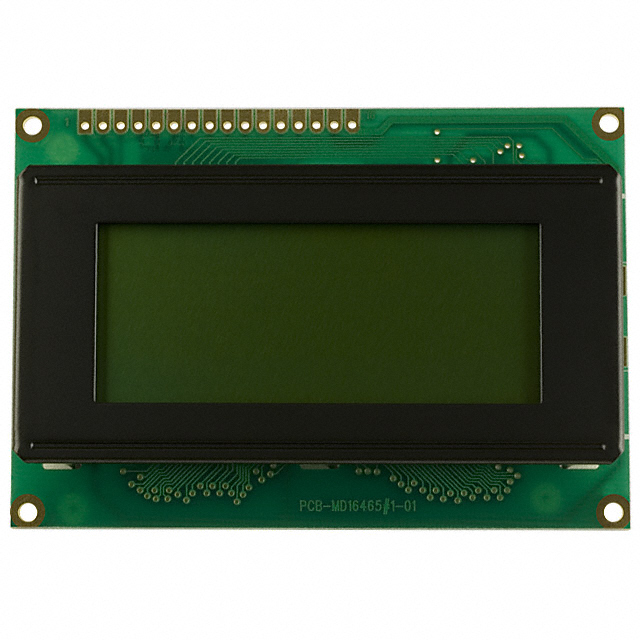

The Varitronix MDL(S)-16465-SS-LV-S-LED-04-G is a character display module featuring a 16x4 character format with a 5x8 dot matrix character construction. This STN (Super-Twisted Nematic) LCD utilizes a transflective display mode for visibility in varying light conditions, complemented by a green LED backlight. The module operates at a 5V supply voltage and offers a parallel interface for data communication. Its dimensions are 87.00mm x 60.00mm x 9.40mm, with a viewing area of 61.80mm x 25.20mm. This component is suitable for applications in industrial control systems, medical devices, and point-of-sale equipment.
Additional Information
Series: MDL(S)-16465RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Green |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 5V |
| Viewing Area | 61.80mm L x 25.20mm W |
| Character Size | 4.75mm H x 2.95mm W |
| Display Format | 16 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.55mm H |
| Outline L x W x H | 87.00mm x 60.00mm x 9.40mm |
| Text Color | - |
| Background Color | Green |
| Number of Characters | 64.0 |
| Packaging |
