MDLS-16265-SS-LV-S-LED-04-G-16
LCD MOD 32DIG 16X2 TRANSFLCT GRNManufacturer: Varitronix
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

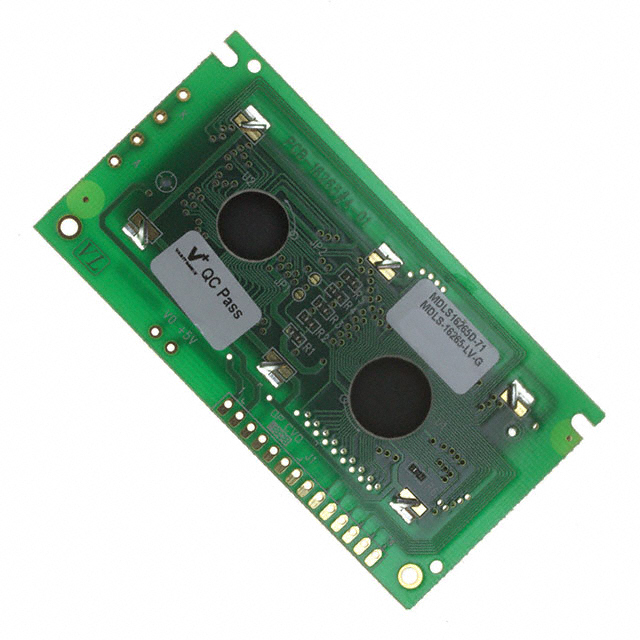

Varitronix MDL(S)-16265 character display module, part number MDLS-16265-SS-LV-S-LED-04-G-16, offers a 16x2 character format (32 characters total) with a transflective STN display. This module features green LED backlighting for enhanced readability in various ambient light conditions. The character format is 5x8 dots, with individual dot dimensions of 0.55mm W x 0.65mm H, and character dimensions of 5.55mm H x 2.95mm W. Data is interfaced via a parallel connection. The module operates within a voltage supply range of 4.75V to 5.25V and has an operating temperature range of -5°C to 50°C. Its physical dimensions are 80.00mm x 36.00mm x 9.80mm, with a viewing area of 61.00mm L x 15.80mm W. This component is utilized in industrial automation, medical equipment, and point-of-sale systems.
Additional Information
Series: MDL(S)-16265RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Green |
| Interface | Parallel |
| Operating Temperature | -5°C ~ 50°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Viewing Area | 61.00mm L x 15.80mm W |
| Character Size | 5.55mm H x 2.95mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.65mm H |
| Outline L x W x H | 80.00mm x 36.00mm x 9.80mm |
| Text Color | - |
| Background Color | Green |
| Number of Characters | 32.0 |
| Packaging |
