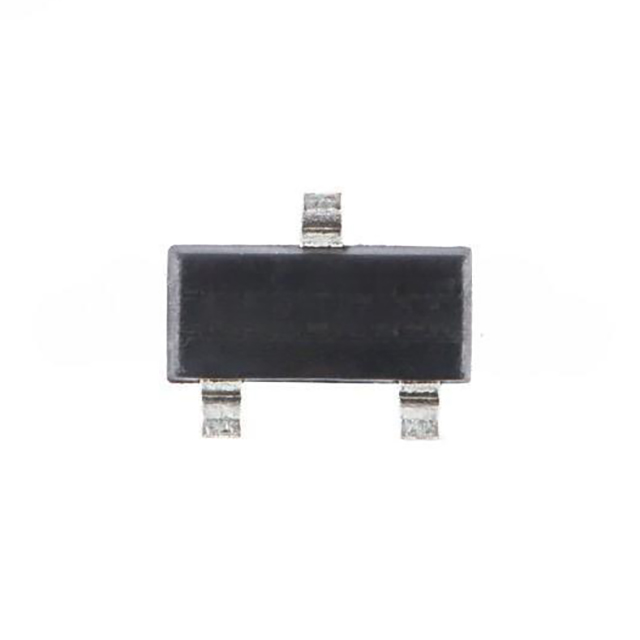

SI2318A
SOT-23 N-CHANNEL POWER MOSFETS RManufacturer: UMW
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 4.3A (Ta), 5.6A (Tc) 1.25W (Ta), 2.1W (Tc) Surface Mount SOT-23
Additional Information
Series: UMWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Ta), 5.6A (Tc) |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 4.3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta), 2.1W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 340 pF @ 20 V |
