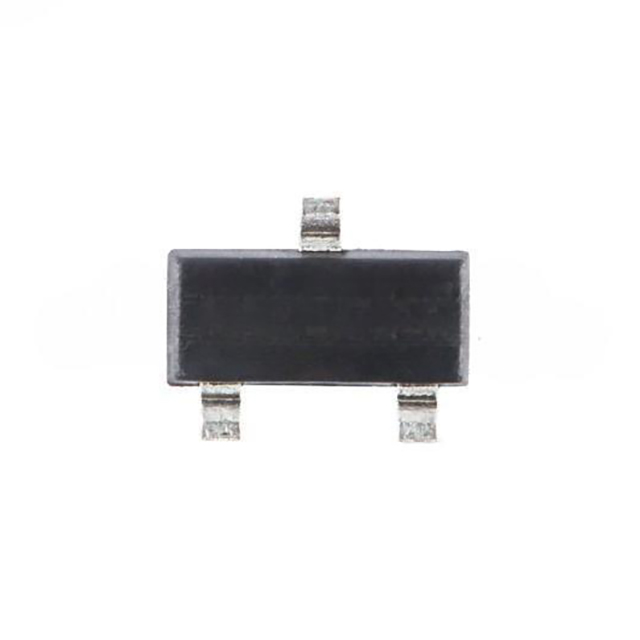

SI2310A
60V 3A 90MR@10V,3A 1.38W 3V@250AManufacturer: UMW
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 3A (Ta) 1.38W (Ta) Surface Mount SOT-23
Additional Information
Series: UMWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Rds On (Max) @ Id, Vgs | 80mOhm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.38W (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 780 pF @ 25 V |
