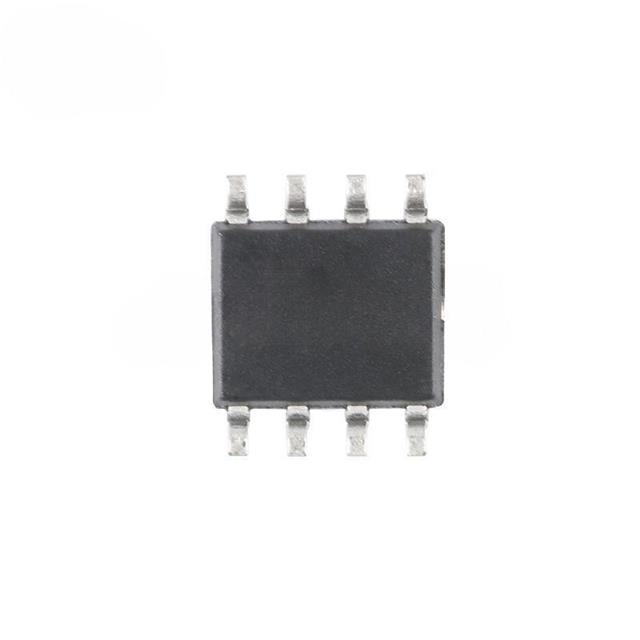

AO4459
SOP-8 MOSFETS ROHSManufacturer: UMW
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 6.5A (Ta) 3.1W (Ta) Surface Mount 8-SOP
Additional Information
Series: UMWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 6.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-SOP |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 520 pF @ 15 V |
