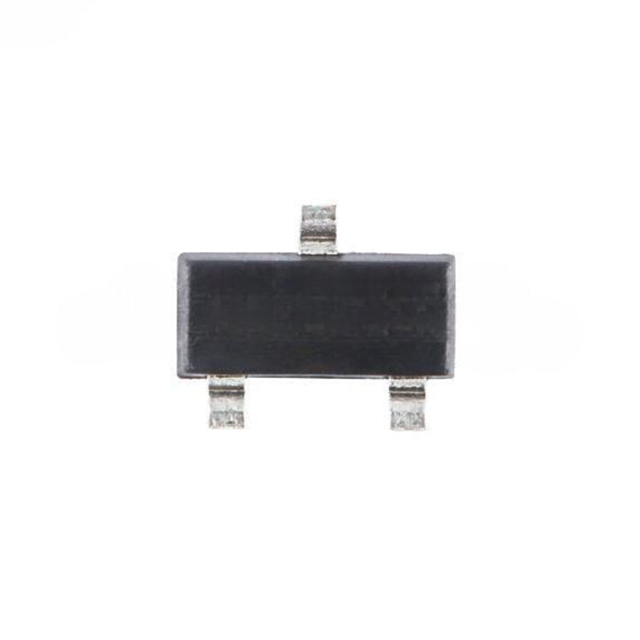

AO3423A
SOT-23 POWER MOSFETS ROHSManufacturer: UMW
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 2A (Ta) 1.4W (Ta) Surface Mount SOT-23-3L
Additional Information
Series: UMWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 2.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.4W (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SOT-23-3L |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 3.2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 325 pF @ 4.5 V |
Request a Quote
