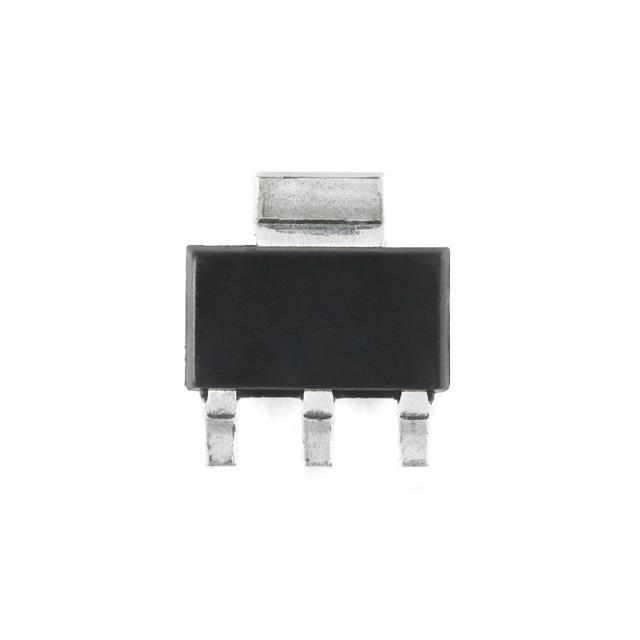

2N65G
SOT-223 N-CHANNEL POWER MOSFETSManufacturer: UMW
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 2A (Tj) Surface Mount SOT-223
Additional Information
Series: UMWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tj) |
| Rds On (Max) @ Id, Vgs | 5.5Ohm @ 1A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | SOT-223 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 14.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 311 pF @ 25 V |
