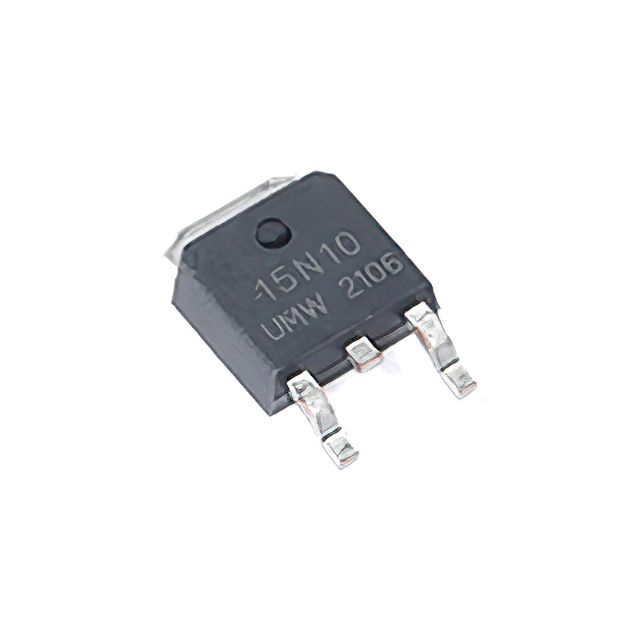

15N10
100V 15A 50W 80MR@10V,10A 2.5V@2Manufacturer: UMW
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 15A (Tc) 55W (Tc) Surface Mount TO-252 (DPAK)
Additional Information
Series: UMWRoHS Status: unknownManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 55W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | TO-252 (DPAK) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 19.2 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 632 pF @ 50 V |
