SS8050
25V 300MW 1.5A 100MHZ 500MV@800MManufacturer: UMW
Categories: Single Bipolar Transistors
Quality Control: Learn More

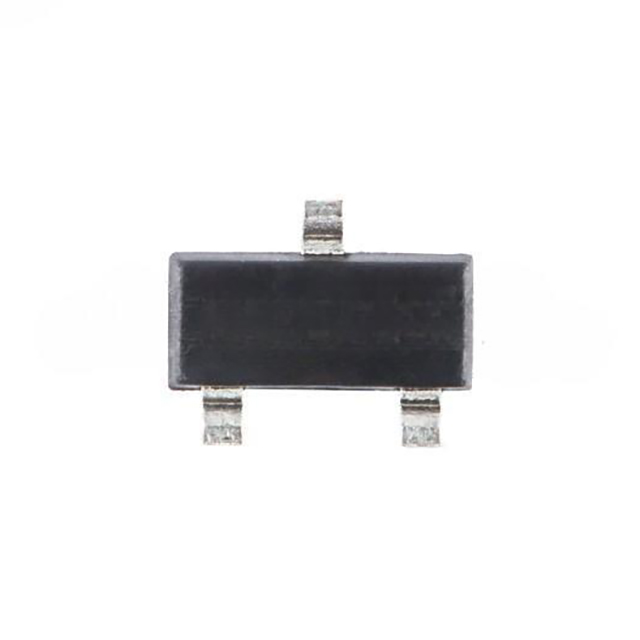

Bipolar (BJT) Transistor NPN 25 V 1.5 A 100MHz 300 mW Surface Mount SOT-23
Additional Information
Series: UMWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 80mA, 800mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 100mA, 1V |
| Frequency - Transition | 100MHz |
| Supplier Device Package | SOT-23 |
| Current - Collector (Ic) (Max) | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 25 V |
| Power - Max | 300 mW |
