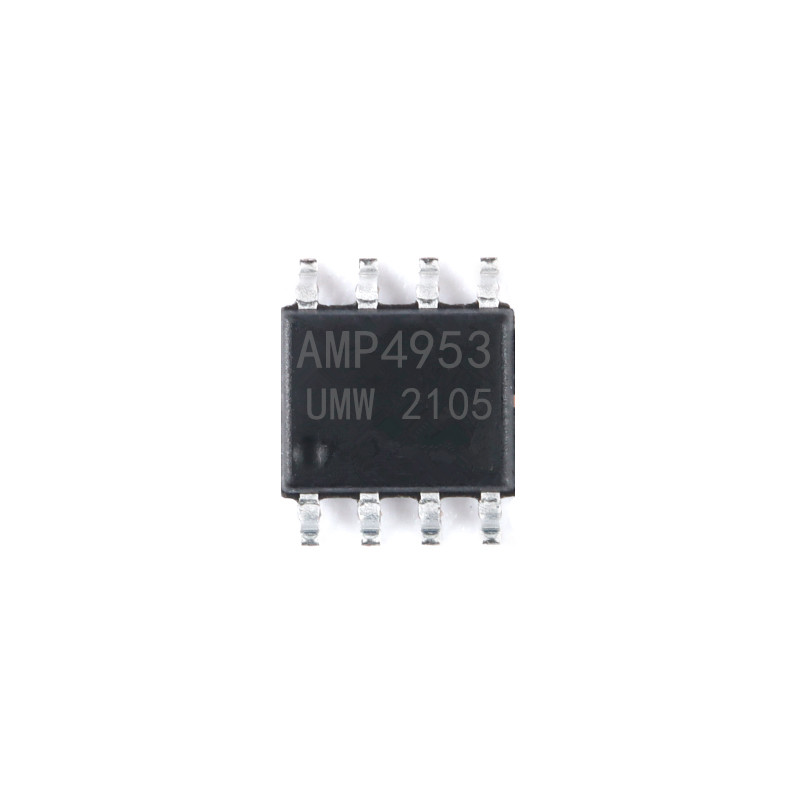

APM4953
MOSFET 30V 5.3A 8SOPManufacturer: UMW
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 5.3A (Ta) 2W (Ta) Surface Mount 8-SOP
Additional Information
Series: UMWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power - Max | 2W (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 5.3A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 504pF @ 15V |
| Rds On (Max) @ Id, Vgs | 41mOhm @ 5.3A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-SOP |
