TPS-12-10W
10W 12V SOLAR PANEL - 12.8 X 12.Manufacturer: Tycon Systems Inc.
Categories: Solar Cells
Quality Control: Learn More
Tycon Systems Inc. TPS-W series TPS-12-10W is a 10W monocrystalline solar panel. This photovoltaic component features a maximum power voltage (Vmp) of 17.85V and an open-circuit voltage (Voc) of 21.95V. The current at maximum power (Imp) is 620mA, with a short-circuit current (Isc) of 690mA. Designed for reliable operation, it maintains performance across an operating temperature range of -40°C to 85°C. The panel’s dimensions are 354.00mm x 318.00mm x 18.00mm. This component is utilized in various renewable energy applications, including off-grid power systems and remote monitoring solutions.
Additional Information
Series: TPS-WRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Cell (36) |
| Size / Dimension | 13.937"" L x 12.520"" W x 0.709"" H (354.00mm x 318.00mm x 18.00mm) |
| Type | Monocrystalline |
| Operating Temperature | -40°C ~ 85°C |
| Voltage @ Pmpp | 17.85 V |
| Current @ Pmpp | 620 mA |
| Voltage - Open Circuit | 21.95 V |
| Current - Short Circuit (Isc) | 690 mA |
| Power (Watts) - Max | 10 W |
Request a Quote
Clients Also Buy
TPS-12-15W
15W 12V SOLAR PANEL

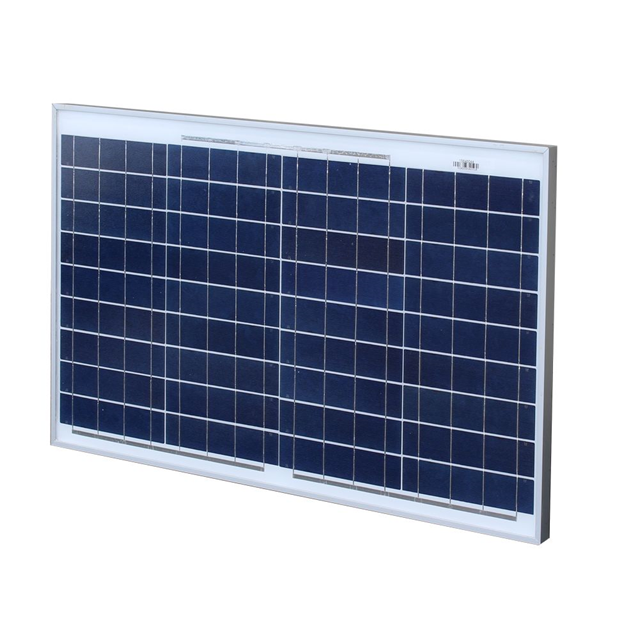

TPS-12-30W
