OPB882P51
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: TT Electronics/Optek Technology
Categories: Transistor Output
Quality Control: Learn More

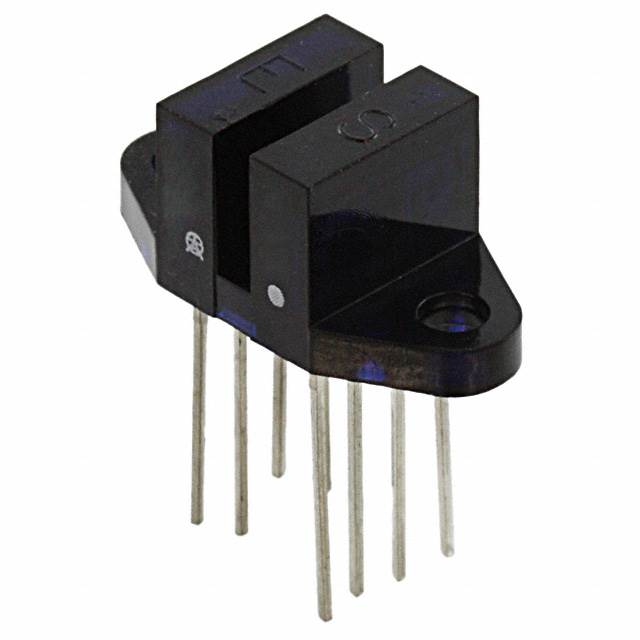

TT Electronics/Optek Technology OPB882P51 is a through-beam optical sensor featuring a phototransistor output. This pre-wired module offers a sensing distance of 0.125 inches (3.18mm). Key electrical specifications include a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. The component is rated for a maximum collector-emitter breakdown voltage of 30 V. Designed for robust operation, it functions within an operating temperature range of -40°C to 85°C. The OPB882P51 is suitable for chassis mounting and is supplied in bulk packaging. This sensor finds application in motion detection, object sensing, and automation control systems across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Pre-Wired |
| Sensing Distance | 0.125"" (3.18mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | - |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
Request a Quote
