OPB870T55
SENSOR OPT SLOT PHOTOTRAN PCB MTManufacturer: TT Electronics/Optek Technology
Categories: Transistor Output
Quality Control: Learn More

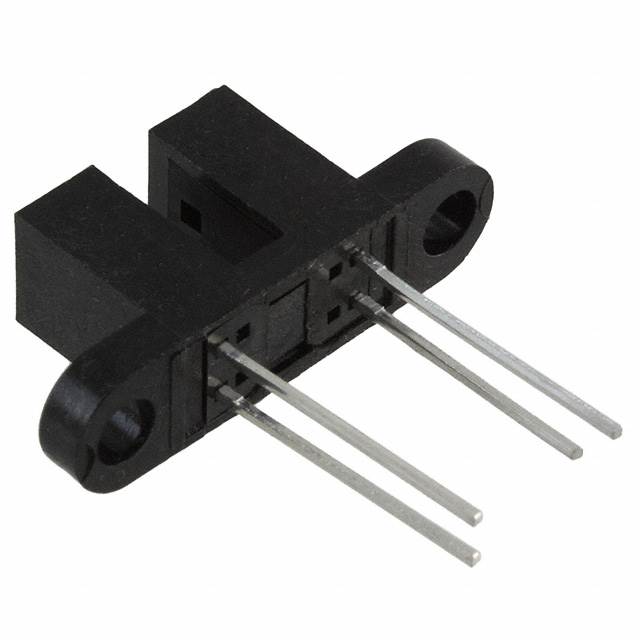

TT Electronics/Optek Technology OPB870T55 is a through-beam optical sensor featuring a phototransistor output. This component is designed for PCB mounting and offers a sensing distance of 0.125 inches (3.18mm). It operates with a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. The device boasts a collector-emitter breakdown voltage of 30 V and is rated for operation across a temperature range of -40°C to 85°C. The OPB870T55 is suitable for various industrial automation and control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.125"" (3.18mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | - |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
