OPB828A
SENSOR OPT SLOT PHOTOTRAN PCB MTManufacturer: TT Electronics/Optek Technology
Categories: Transistor Output
Quality Control: Learn More

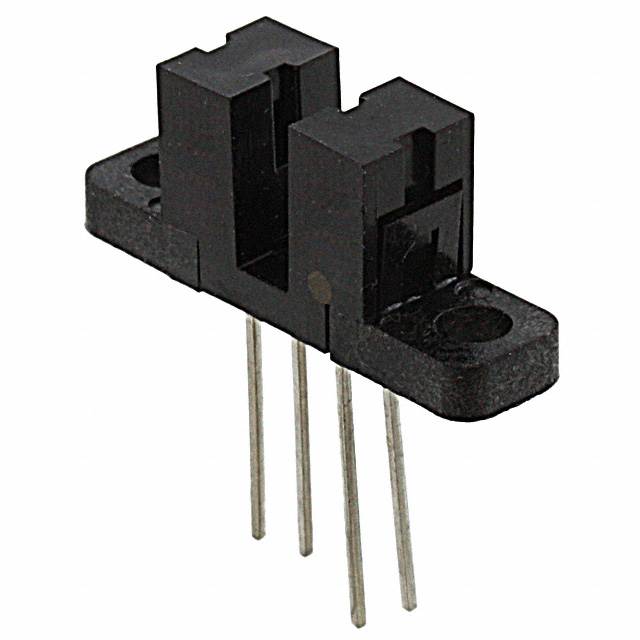

TT Electronics/Optek Technology OPB828A is a through-beam optical sensor featuring a phototransistor output. This component is designed for PCB mounting and offers a sensing distance of 0.125 inches (3.18mm). The maximum collector current (Ic) is rated at 30 mA, with a maximum DC forward current (If) of 50 mA. The device has a collector-emitter breakdown voltage of 30 V. Operating within a temperature range of -40°C to 85°C, this sensor is suitable for applications requiring precise detection of objects interrupting an optical beam. It finds utility in various industrial automation, office equipment, and security systems. The OPB828A is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.125"" (3.18mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | - |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
