OPB817
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: TT Electronics/Optek Technology
Categories: Transistor Output
Quality Control: Learn More

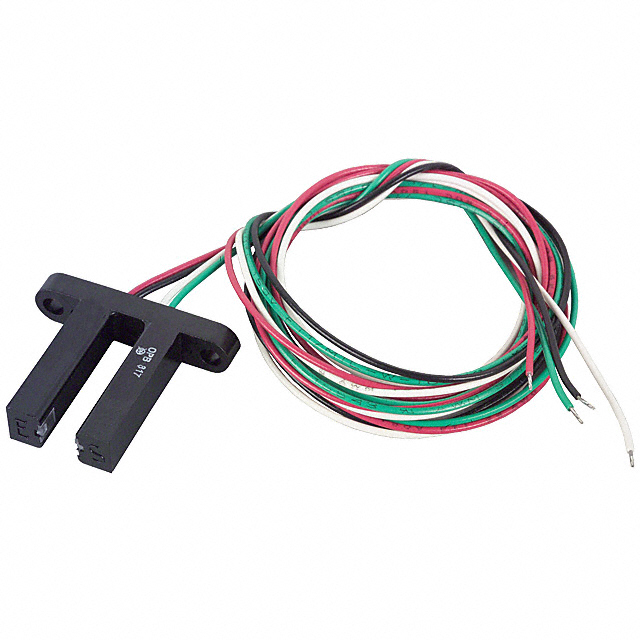

TT Electronics/Optek Technology OPB817 is a through-beam optical sensor module featuring a phototransistor output. This device is designed for accurate object detection with a sensing distance of 0.200" (5.08mm). The module is pre-wired for simplified integration and chassis mounting. Key electrical specifications include a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. The collector emitter breakdown voltage (Vce) is rated at a maximum of 30 V. The OPB817 operates within a temperature range of -40°C to 80°C. This component is commonly utilized in industrial automation, security systems, and consumer electronics for position sensing and motion detection applications. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Pre-Wired |
| Sensing Distance | 0.200"" (5.08mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 80°C |
| Output Configuration | Phototransistor |
| Response Time | - |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
