OPB660T
SENSOR OPT SLOT TRANS W/RES PCBManufacturer: TT Electronics/Optek Technology
Categories: Transistor Output
Quality Control: Learn More

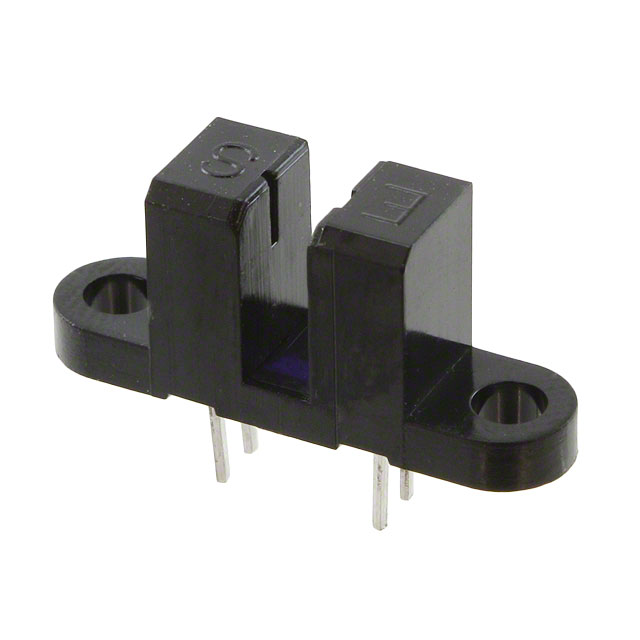

TT Electronics/Optek Technology OPB660T is a through-beam optical sensor featuring a transistor output with an integrated base-emitter resistor. This component is designed for PCB mounting and offers a sensing distance of 0.125" (3.18mm). Key electrical specifications include a maximum collector current (Ic) of 30mA and a maximum DC forward current (If) of 50mA. The device operates within a temperature range of -40°C to 100°C, with a maximum collector-emitter breakdown voltage of 24V. This sensor is suitable for applications in industrial automation, medical devices, and consumer electronics where precise object detection and position sensing are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.125"" (3.18mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 100°C |
| Output Configuration | Transistor, Base-Emitter Resistor |
| Response Time | - |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 24 V |
| Current - DC Forward (If) (Max) | 50 mA |
