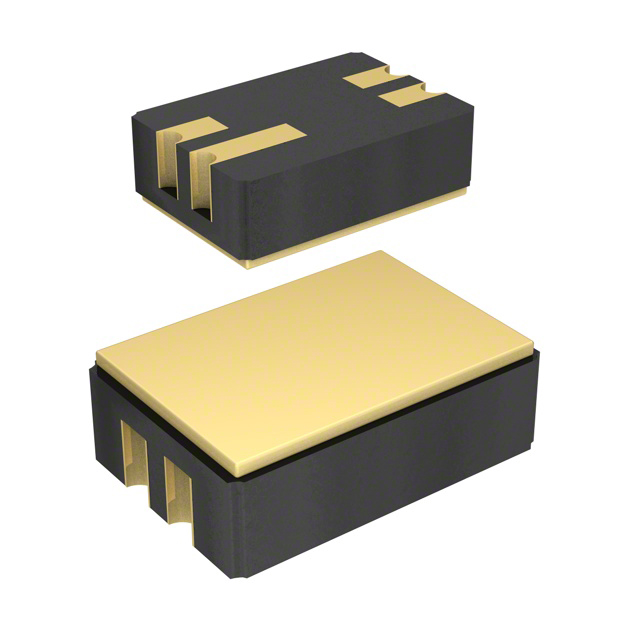

2N2222AUATXV
TRANS NPN 50V 0.8A 4CLCCManufacturer: TT Electronics/Optek Technology
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 50 V 800 mA 500 mW Surface Mount 4-CLCC (5.59x3.81)
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-CLCC |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 15mA, 150mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 75 @ 1mA, 10V |
| Frequency - Transition | - |
| Supplier Device Package | 4-CLCC (5.59x3.81) |
| Current - Collector (Ic) (Max) | 800 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 500 mW |
