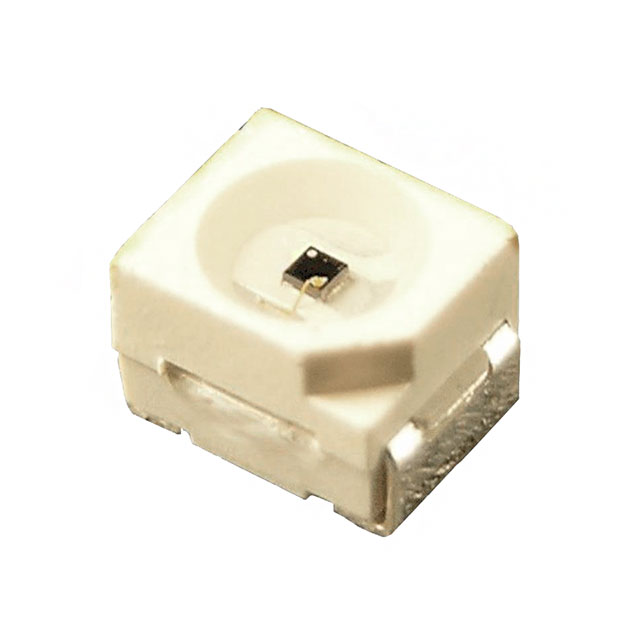

OP580DA
SENSOR PHOTO 935NM TOP VIEW PLCCManufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More
TT Electronics/Optek Technology OP580DA is a phototransistor designed for optical sensing applications. This component features a top-view orientation within a 2-PLCC package, facilitating surface mount assembly. It operates with a maximum collector current (Ic) of 32 mA and a breakdown voltage of 35 V. The device exhibits a low dark current (Id) of 1 µA and a maximum power dissipation of 100 mW. Its spectral sensitivity peaks at 935nm, making it suitable for applications requiring detection in the near-infrared spectrum. The OP580DA is commonly utilized in industrial automation, medical equipment, and automotive systems where precise optical detection is critical. This component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 100° |
| Current - Dark (Id) (Max) | 1 µA |
| Current - Collector (Ic) (Max) | 32 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 100 mW |
