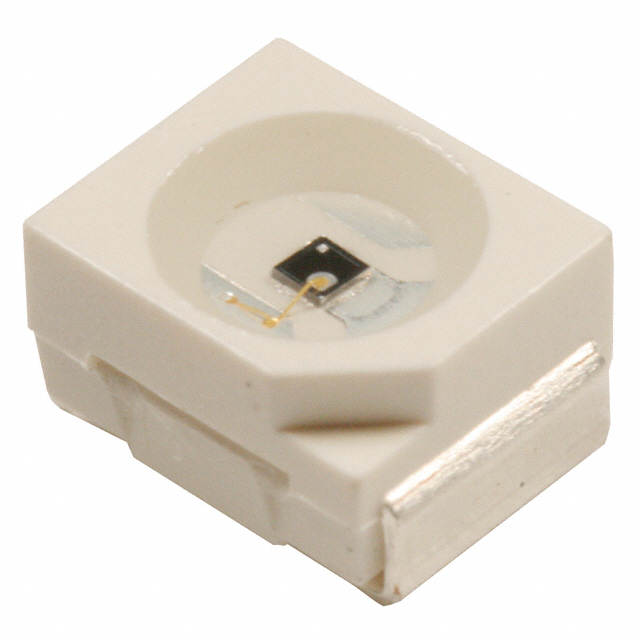

OP580
SENSOR PHOTO 935NM TOP VIEW PLCCManufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More
The TT Electronics/Optek Technology OP580 is a phototransistor designed for demanding optical sensing applications. This component features a top-view orientation and is housed in a 2-PLCC surface-mount package, supplied on tape and reel. It exhibits a peak sensitivity at 935nm, making it suitable for systems requiring detection in the near-infrared spectrum. With a maximum collector current (Ic) of 20 mA and a collector-emitter breakdown voltage of 30V, the OP580 offers robust performance. Its low dark current (Id) of 100 nA (max) ensures signal integrity in low-light conditions. The device has a maximum power dissipation of 75 mW and an operating temperature range of -25°C to 85°C. Applications include industrial automation, medical equipment, and consumer electronics where precise optical detection is critical. The viewing angle is 100°.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 100° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 75 mW |
