OP573
SENSOR PHOTO 935NM TOP VIEW 2SMDManufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More

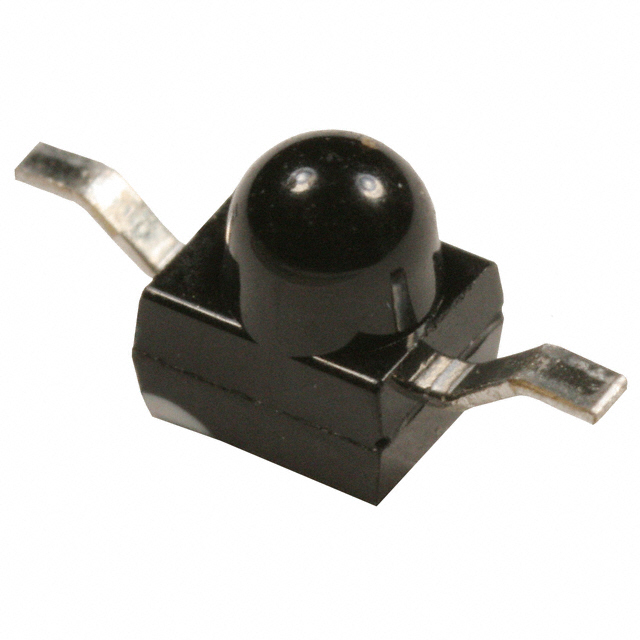

TT Electronics/Optek Technology OP573 is a top-view phototransistor designed for surface mount applications. This 2-SMD, Z-Bend packaged component offers a peak sensitivity at 935nm, making it suitable for various optoelectronic sensing and control functions. With a maximum collector current of 20 mA and a collector-emitter breakdown voltage of 30 V, it provides robust performance. The low dark current of 100 nA (max) ensures accurate signal detection in diverse ambient light conditions. The device operates within a temperature range of -25°C to 85°C and has a maximum power dissipation of 130 mW. Its 25° viewing angle is optimized for focused light detection. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics where precise optical sensing is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 25° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 130 mW |
