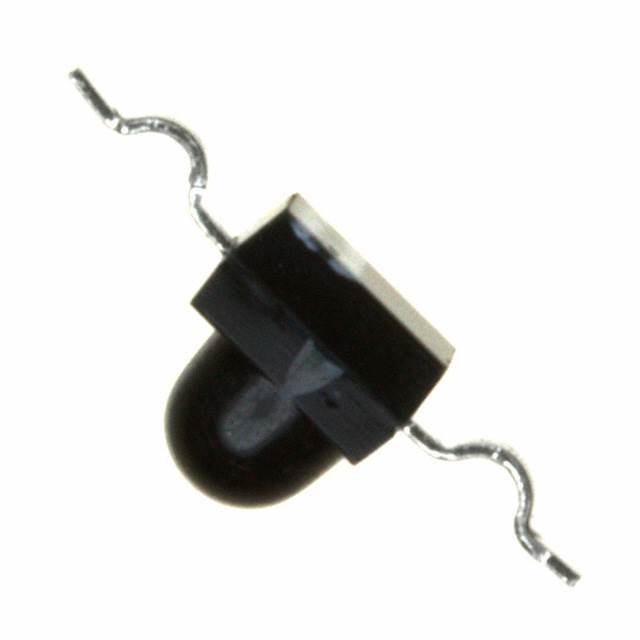

OP572
SENSOR PHOTO 935NM TOP VIEW 2SMDManufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More
TT Electronics/Optek Technology OP572 is a high-sensitivity phototransistor designed for optical sensing applications. This component features a 935nm peak sensitivity wavelength and a narrow 25° viewing angle, ideal for precise proximity detection and object presence sensing. The OP572 is housed in a compact 2-SMD, Yoke Bend surface-mount package, facilitating efficient board layout. It offers a maximum collector current of 20 mA and a collector-emitter breakdown voltage of 30 V, with a low dark current of 100 nA. This device is rated for a maximum power dissipation of 130 mW and operates within a temperature range of -25°C to 85°C. The OP572 is commonly utilized in industrial automation, consumer electronics, and medical equipment where reliable optical sensing is critical. It is supplied in tape and reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Yoke Bend |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 25° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 130 mW |
