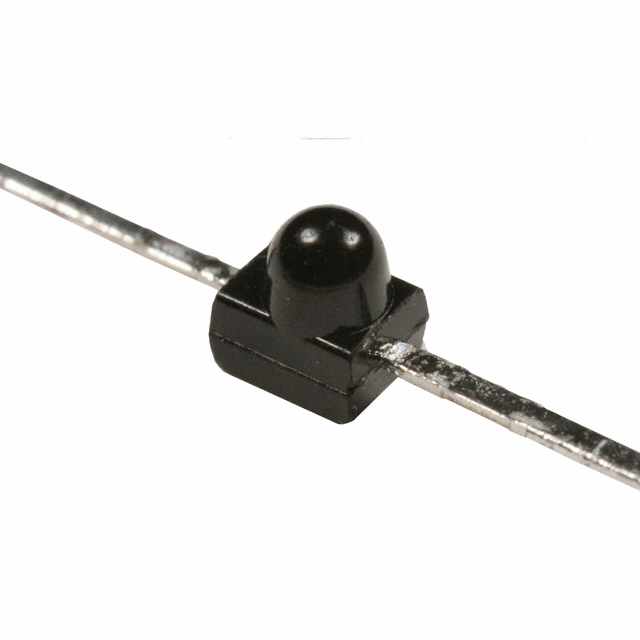

OP570
SENSOR PHOTO 935NM TOP VIEW AXLManufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More
TT Electronics/Optek Technology OP570 Phototransistor, a top-view, axial-mount device with flat leads, offers a peak sensitivity at 935nm. This component features a maximum collector current (Ic) of 20 mA and a low dark current (Id) of 100 nA. Designed for through-hole mounting, the OP570 operates within a temperature range of -25°C to 85°C and has a maximum power dissipation of 130 mW. Its collector-emitter breakdown voltage is rated at 30 V, with a viewing angle of 25°. This phototransistor is suitable for applications in industrial automation, medical devices, and optical sensing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Wavelength | 935nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 25° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 130 mW |
