OP535C
SENSOR PHOTO 935NM TOP VIEW T1Manufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More

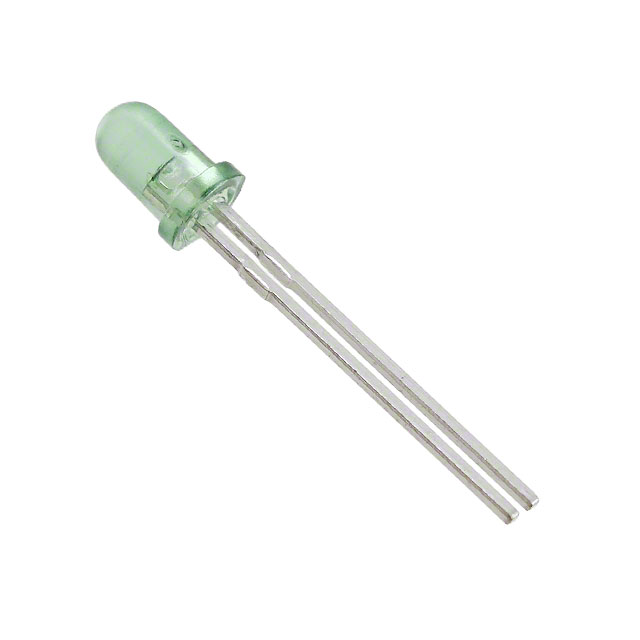

TT Electronics/Optek Technology OP535C is a top-view phototransistor designed for applications requiring detection in the 935nm infrared spectrum. This T-1 packaged component offers a collector current (Ic) of up to 32 mA and a maximum collector-emitter breakdown voltage of 15 V. With a low dark current (Id) of 100 nA, it ensures precise signal detection. The OP535C features a through-hole mounting style and can operate within an extended temperature range of -40°C to 100°C. Its maximum power dissipation is rated at 100 mW. This phototransistor is commonly utilized in industrial automation, medical equipment, and optical sensing systems where reliable near-infrared detection is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T-1 |
| Wavelength | 935nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Viewing Angle | - |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 32 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Power - Max | 100 mW |
