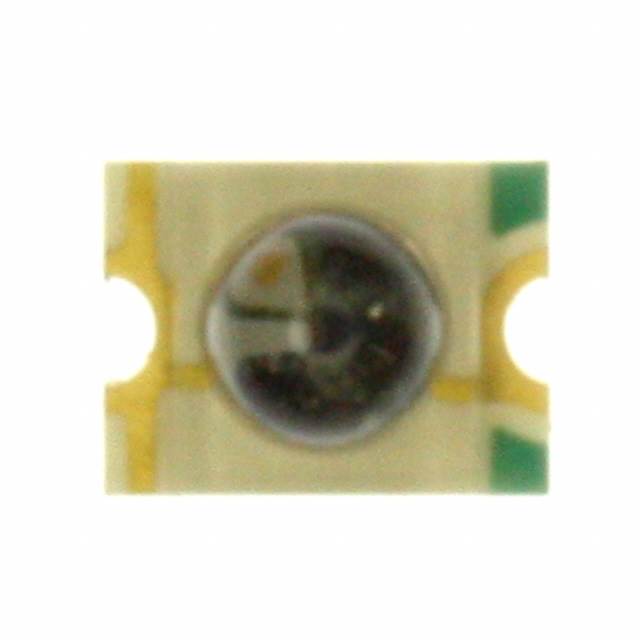

OP525DA
SENSOR PHOTO 935NM TOP VIEW 1210Manufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More
TT Electronics/Optek Technology OP525DA is a surface mount phototransistor designed for infrared detection at 935nm. This component features a top-view orientation within a 1210 (3225 Metric) package, supplied on tape and reel. The OP525DA exhibits a maximum collector current (Ic) of 30 mA and a low dark current (Id) of 200 nA. With a maximum power dissipation of 100 mW and a collector-emitter breakdown voltage of 35 V, it offers reliable performance across an operating temperature range of -40°C to 80°C. The viewing angle is specified at 25°. This phototransistor is suitable for applications in industrial automation, medical devices, and consumer electronics where precise infrared sensing is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 80°C |
| Viewing Angle | 25° |
| Current - Dark (Id) (Max) | 200 nA |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 100 mW |
