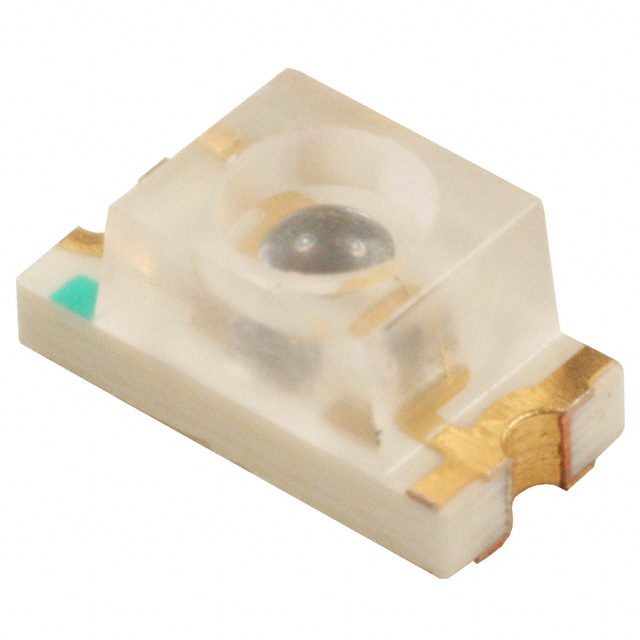

OP522
SENSOR PHOTO 935NM TOP VIEW 1206Manufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More
TT Electronics/Optek Technology OP522 is a phototransistor designed for top-view optical sensing applications. This component features a peak sensitivity at 935nm, making it suitable for systems requiring detection of near-infrared light. The OP522 is housed in a compact 1206 (3216 Metric) surface-mount package, ideal for space-constrained designs. Key electrical specifications include a maximum collector current (Ic) of 20 mA and a low dark current (Id) of 100 nA. The device operates within a temperature range of -25°C to 85°C and has a maximum collector-emitter breakdown voltage of 30 V. With a maximum power dissipation of 75 mW, it is engineered for reliable performance in industrial automation, automotive, and medical equipment sectors. The OP522 is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | - |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 75 mW |
