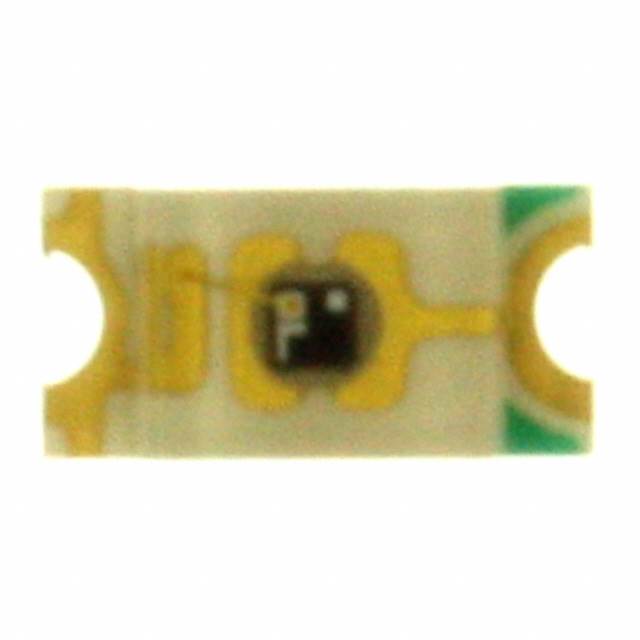

OP521DA
SENSOR PHOTO 935NM TOP VIEW 1206Manufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More
TT Electronics/Optek Technology OP521DA is a top-view phototransistor designed for surface mount applications. This component operates at a peak wavelength of 935nm, making it suitable for optical sensing and control systems. It features a collector current of up to 30 mA and a collector-emitter breakdown voltage of 35V. The dark current is specified at a maximum of 200 nA, ensuring low noise operation. With a maximum power dissipation of 100 mW and an operating temperature range of -25°C to 85°C, the OP521DA is engineered for reliability. Its 1206 (3216 Metric) package with a 150° viewing angle is commonly utilized in industrial automation, consumer electronics, and medical equipment. This device is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 150° |
| Current - Dark (Id) (Max) | 200 nA |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 100 mW |
