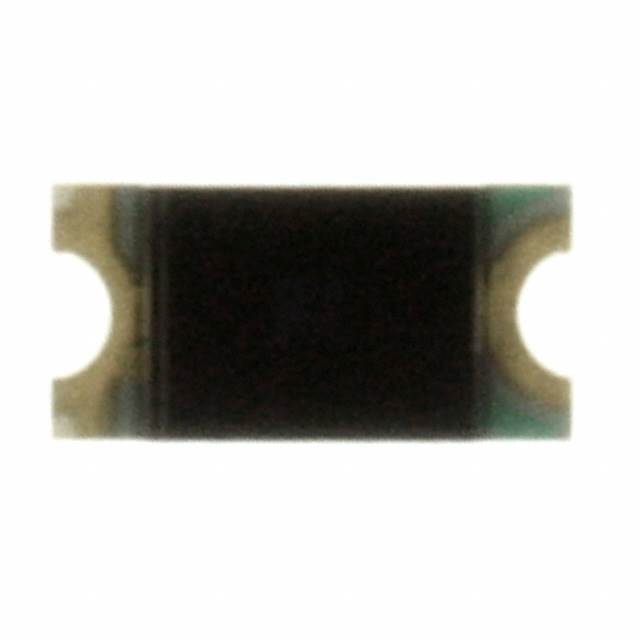

OP520DA
SENSOR PHOTO 935NM TOP VIEW 1206Manufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More
TT Electronics/Optek Technology OP520DA is a surface-mount phototransistor designed for efficient detection of infrared light at 935nm. This component features a top-view orientation and is housed in a compact 1206 (3216 Metric) package, supplied on tape and reel. The OP520DA offers a maximum collector current of 30mA and a low dark current of 200nA, ensuring reliable operation in various lighting conditions. Key specifications include a maximum collector-emitter breakdown voltage of 35V and a power dissipation rating of 100mW. With a wide viewing angle of 150°, this phototransistor is suitable for applications in industrial automation, consumer electronics, and optical sensing systems. The operating temperature range is from -25°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 150° |
| Current - Dark (Id) (Max) | 200 nA |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 100 mW |
