OP501
SENSOR PHOTO 935NM TOP VIEW 0805Manufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More

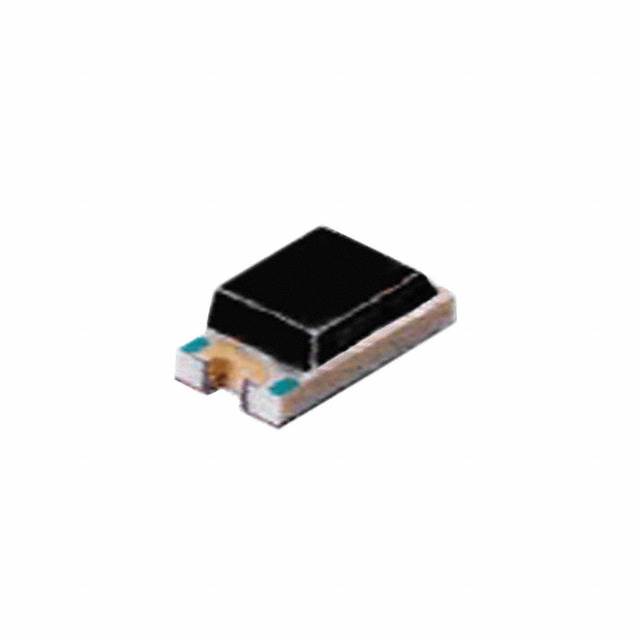

TT Electronics/Optek Technology OP501 is a top-view phototransistor designed for infrared detection at 935nm. This component, housed in an 0805 (2012 Metric) surface-mount package, offers a collector current of up to 20 mA and a collector-emitter breakdown voltage of 30 V. With a maximum power dissipation of 75 mW and a dark current of 100 nA, it is suitable for applications requiring precise optical sensing. Its wide 150° viewing angle enhances light capture. The OP501 is commonly utilized in industrial automation, medical equipment, and consumer electronics where reliable infrared sensing is critical. It is supplied in tape and reel packaging for efficient automated assembly. Operating temperature range is -25°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 150° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 75 mW |
