OP500
SENSOR PHOTO 935NM TOP VIEW 0805Manufacturer: TT Electronics/Optek Technology
Categories: Phototransistors
Quality Control: Learn More

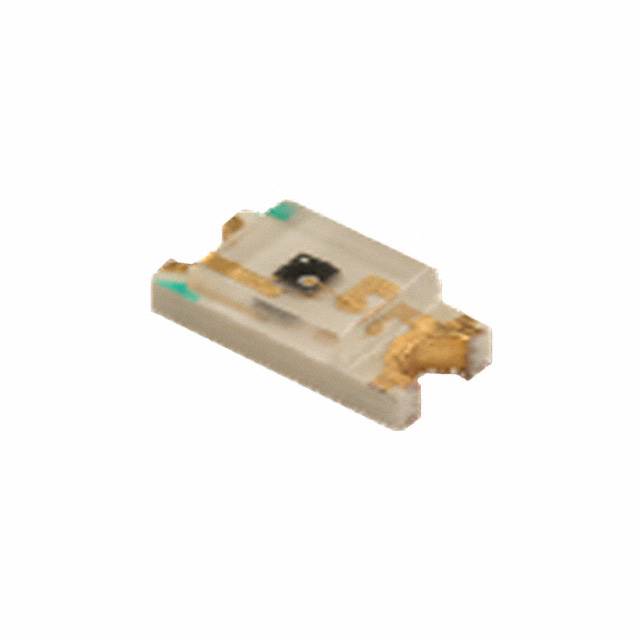

TT Electronics/Optek Technology OP500 phototransistor, housed in an 0805 (2012 Metric) surface-mount package with a top-view orientation. This component features a peak sensitivity wavelength of 935nm and a maximum collector current (Ic) of 20 mA. It exhibits a low dark current (Id) of 100 nA and a maximum power dissipation of 75 mW. The OP500 supports a collector-emitter breakdown voltage of up to 30 V and operates within a temperature range of -25°C to 85°C. The viewing angle is 150°. Supplied on Tape & Reel (TR) packaging, this phototransistor is suitable for applications in industrial automation, optical sensing, and consumer electronics where infrared detection is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Wavelength | 935nm |
| Mounting Type | Surface Mount |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 150° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 75 mW |
